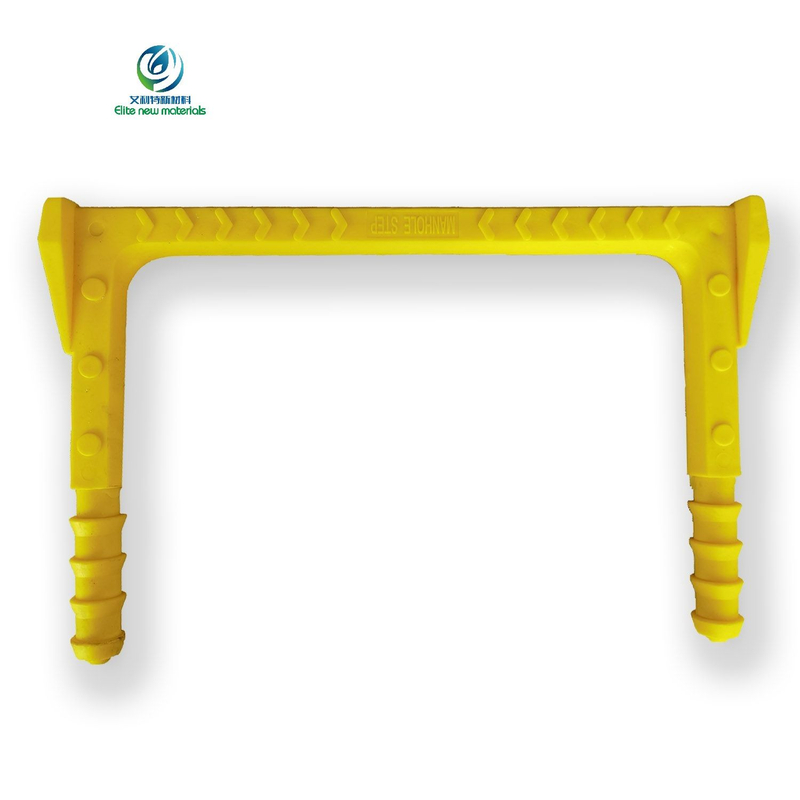

manhole step
Elite
This product is a high-strength engineering plastic inspection well step, specially designed for underground wells (such as sewage wells, rainwater wells, cable wells, fire protection wells, etc.), to solve the climbing safety problem for personnel when entering the well for work.
Structural design: One-piece molding, the tread surface is equipped with anti-slip texture (increasing friction and preventing slipping when stepping), both ends are equipped with threaded screws (compatible with the reserved holes on the well wall, easy to install).
Material characteristics: Made of ABS / composite engineering plastic, resistant to acid and alkali, moisture-proof, anti-aging, suitable for the complex corrosive environment inside the well.
Manufactured from 12 mm high-strength steel bars coated with a durable polypropylene copolymer layer, our manhole steps offer exceptional corrosion resistance, slip resistance and impact resistance. The PP coating provides a non-slip surface even in wet conditions, enhancing worker safety during maintenance and inspection operations.
Unlike traditional manhole steps that require complex screw mounting, our innovative design allows for direct wall installation without any screws or additional hardware. This significantly reduces installation time and labor costs, making it an ideal choice for large-scale construction projects and retrofitting applications.
Each step is rigorously tested to support loads of over 400 kg, providing reliable support for workers and their equipment. The flexible yet robust construction ensures long-term durability even under heavy use, minimizing the need for frequent replacements and maintenance.
Parameter | Specification |
|---|---|
Standard Compliance | DIN19555, EN 13101, EN124 |
Material | 12 mm steel bar with polypropylene copolymer coating |
Load Capacity | >400 kg |
Installation Hole Diameter | 25 mm |
Installation Hole Depth | 70 mm |
Distance Between Holes | 330 mm |
Protrusion from Wall | 15 cm |
Brand | Elite |
Model | Manhole Step |
Installing Elite's PP-coated steel manhole steps is quick and straightforward, requiring only basic tools:
Drill two 25 mm diameter holes using a masonry drill bit. Ensure the holes are parallel, 330 mm apart and 70 mm deep.
Drive the step evenly into the holes using a sledgehammer. Do not strike the center of the step to avoid damaging the coating.
Verify that the step protrudes exactly 15 cm from the wall surface.
Use a level to check and adjust the step's angle for proper alignment.
At Elite, we understand that every project has unique requirements. That's why we offer fully customized design services to meet the specific needs of industrial buyers and construction professionals. Our customization options include:
Lifting holes without through holes
Custom closures and rubber plugs
Special packaging solutions for safe international transportation
Our advanced manufacturing facilities utilize high-quality SMC sheet molding composite material processed through high-temperature molding techniques. We maintain reliable production capacity to ensure on-time delivery for orders of all sizes, from small custom projects to large-scale commercial contracts.
We also provide free design services for new product development, working closely with our clients to create tailored solutions that optimize performance and cost-effectiveness. For clients requiring additional verification, we support third-party testing by SGS, TUV and BV (testing costs are the responsibility of the customer).
Our DIN19555 PP-coated steel manhole steps are manufactured in strict accordance with DIN19555, EN 13101 and EN124 international standards. All products come with comprehensive test reports and load test certificates to ensure compliance with global safety regulations.
Each step is rigorously tested to support loads exceeding 400 kg, providing reliable support for workers and their equipment in underground access areas.
Yes, we offer fully customized design services to meet the unique needs of our clients. This includes custom lifting holes, closures, rubber plugs and special packaging solutions for international shipping. We also provide free design services for new product development.
Thanks to our innovative no-screw design, each step can be installed in just a few minutes using basic tools. This significantly reduces labor costs and project timelines compared to traditional screw-mounted manhole steps.
Yes, we support third-party testing by reputable organizations including SGS, TUV and BV. Please note that testing costs are the responsibility of the customer.
