Elite's 650mm SMC Round Manhole Cover is designed for municipal roads, underground utility networks, drainage systems, telecommunications, electrical infrastructure and other applications requiring a compact round access cover with D400 load performance.
Manufactured from glass-fiber-reinforced Sheet Molding Compound (SMC), the MR650D uses a multi-layer reinforced composite structure to improve load distribution and structural stability while providing the corrosion resistance and non-metallic characteristics associated with SMC materials.
Quick Specification: Model MR650D | D400 | 600mm clear opening | 650mm cover | 785mm frame | 48.0 kg
The MR650D is designed around a reinforced composite structure combining glass-fiber reinforcement with the molded SMC body. The reinforcement arrangement helps distribute applied loads through the cover structure rather than relying on a single homogeneous material layer.
This design is especially relevant for road and municipal applications where the cover may be exposed to repeated vehicle loading, vibration and long-term outdoor service.
For projects requiring specific bending strength, impact resistance or fatigue data, customers should request the corresponding test documentation for the exact MR650D configuration before project approval.
The current MR650D configuration is listed as D400, making it suitable for projects where a D400-class access cover is specified according to the applicable installation zone and engineering requirements.
Final suitability should still be confirmed according to the road position, traffic conditions, supporting chamber, frame installation and project standard.
Load Selection Note: D400 performance applies to the exact product configuration. Confirm the required standard, frame installation and supporting test documentation before ordering.
SMC composite does not rust in the same way as conventional ferrous materials. This makes the cover suitable for drainage, wastewater, municipal road and other outdoor infrastructure exposed to moisture and changing weather conditions.
The composite structure can also reduce dependence on conventional anti-rust coatings or repeated repainting of the main cover body.
For industrial wastewater, aggressive chemicals, coastal locations or other demanding environments, the actual exposure conditions should be provided during the RFQ stage so that material suitability can be reviewed.
The molded surface can incorporate an anti-slip texture to improve traction for pedestrians, maintenance personnel and vehicle tires in wet outdoor environments.
Surface formulation and pattern can also be reviewed for projects requiring additional weather, UV, fire or identification requirements.
Because the main cover body is manufactured from non-metallic composite material, it has low scrap-metal value compared with conventional cast iron covers.
Additional mechanical locking options can also be incorporated where municipal or utility projects require enhanced access security.
The underside of a composite manhole cover can be reviewed for projects requiring sensors, communication modules or access-monitoring devices.
This can support smart-city applications such as chamber-status monitoring, unauthorized-opening alerts or environmental sensing, subject to the actual sensor hardware and system architecture selected by the project team.

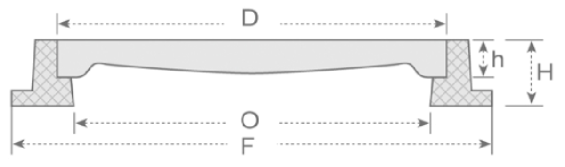

Code | Load | Clear Opening (O) | Cover Size (D) | Frame Size (F) | h | H | Weight |
|---|---|---|---|---|---|---|---|
MR650D | D400 | 600 mm | 650 mm | 785 mm | 40 mm | 100 mm | 48.0 KG |
Installation Note: The 650mm value refers to the cover diameter. The listed clear opening is 600mm and the complete frame diameter is 785mm. Confirm the chamber opening, frame support and finished installation level before ordering.
Municipal roads
Urban drainage systems
Wastewater infrastructure
Underground utility chambers
Telecommunication networks
Electrical utility systems
Industrial infrastructure
Commercial developments
Public works projects
Smart-city utility networks
The 650mm round format provides a practical balance between maintenance access and compact installation dimensions. Combined with a D400 reinforced SMC structure, the cover is suitable for projects where road loading, corrosion resistance and lower handling weight must be considered together.
Project Requirement | MR650D Solution |
|---|---|
Road Load Performance | D400 configuration |
Structural Stability | Multi-layer glass-fiber-reinforced composite structure |
Corrosion Resistance | Non-rusting SMC composite body |
Electrical Environment | Non-metallic and electrically insulating material |
Access Security | Mechanical locking options available |
Smart Infrastructure | Sensor and monitoring integration can be reviewed |
Elite provides customized SMC molding solutions for municipal, road, drainage and utility projects. In addition to standard models such as MR650D, project-specific covers can be developed according to drawings and installation requirements.
Customization may include dimensions, load class, surface pattern, locking structure, molded logo, color, packaging, labeling and provisions for monitoring or identification equipment.
For custom projects, customers should provide drawings, required opening size, frame dimensions, load requirements, installation environment, quantity and required technical documentation.
Learn more about our custom SMC molding capabilities.
Elite New Materials specializes in SMC composite products and has more than 20 years of experience in composite and building-material applications.
For D400 round manhole covers, dimensional consistency, cover-frame fit, molded structure and load performance are critical production-control points. Elite's quality process covers raw material inspection, molding control and finished-product verification.
For projects requiring EN124 or other load-related approval documentation, customers should request documentation that matches the exact MR650D product configuration.
View more information about quality inspection and technical support.
Project Approval Tip: Ask for documentation that matches the exact 650mm cover, 785mm frame and D400 configuration rather than relying only on general SMC product-family claims.

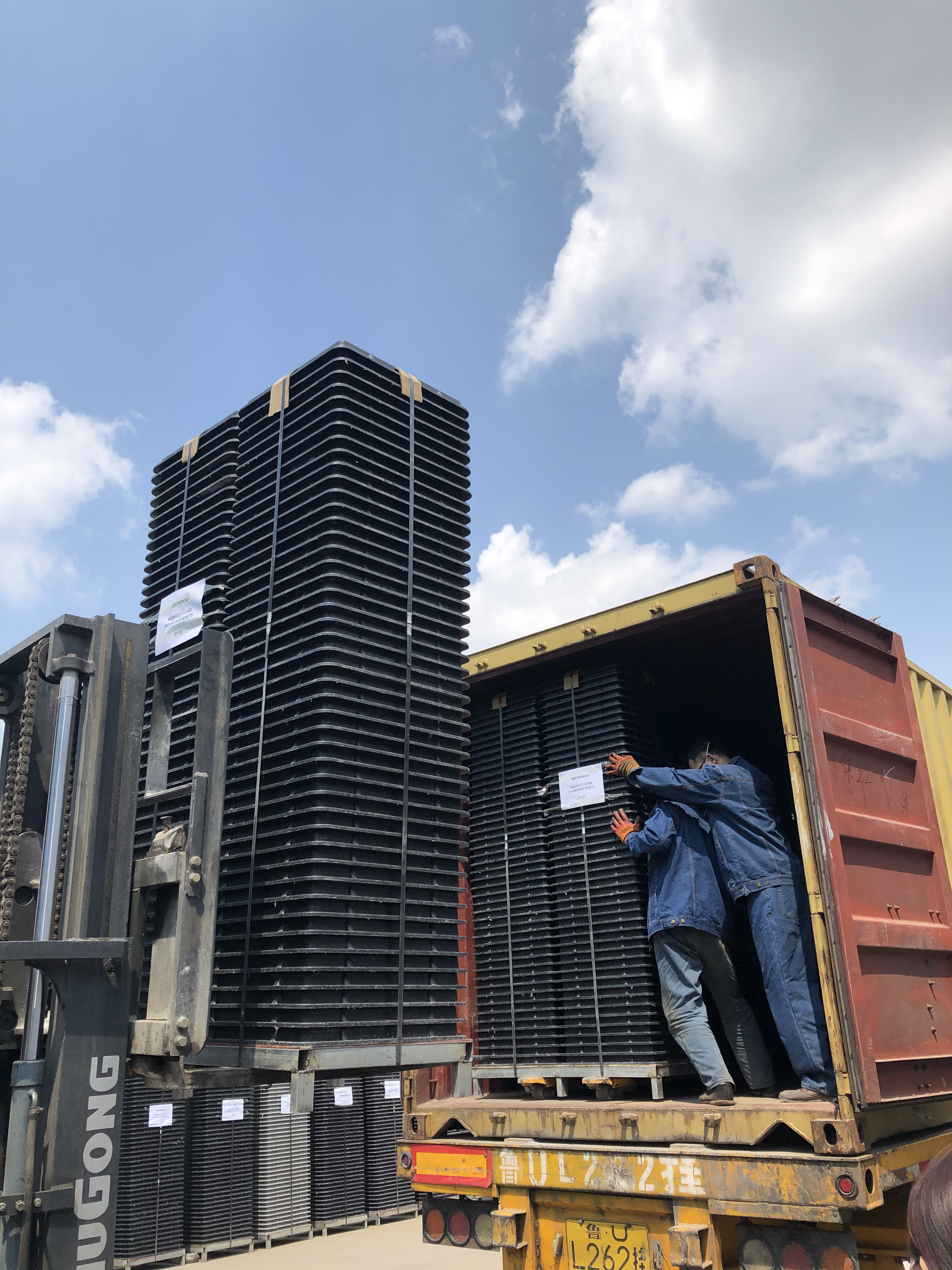

Elite supports standard and customized manhole-cover orders for domestic and international infrastructure projects.
The 48.0kg listed product weight and composite construction can simplify handling compared with heavier traditional solutions, although lifting methods should still follow project safety procedures.
For export orders, customers should provide the required quantity, destination country or port, packaging requirements and target delivery schedule during quotation.
For municipal and infrastructure procurement, repeat cooperation, stable manufacturing quality and reliable technical communication are important alongside the product specification itself.
The following customer communication images are retained from the original product page as direct examples of customer feedback.
Elite continues to develop SMC and BMC composite products for infrastructure applications where corrosion resistance, durable service and reduced corrosion-related maintenance can support long-term project performance.
The company also participates in local community and social-service activities as part of its broader corporate responsibility efforts.
Required cover diameter and clear opening
Required D400 or other load class
Installation zone and expected traffic conditions
Frame and chamber dimensions
Required locking or anti-theft features
Surface texture and anti-slip requirements
Sensor or monitoring integration requirements
Color, molded logo or utility identification
Required quantity
Required EN124 or other test documentation
Destination country or port
Target delivery schedule
The MR650D has a listed clear opening of 600mm. The cover diameter is 650mm and the complete frame diameter is 785mm.
MR650D is listed as a D400 configuration. Final suitability should be confirmed according to the installation zone, supporting structure and applicable project requirements.
The cover uses reinforced composite construction in which glass-fiber reinforcement works with the molded SMC body to improve structural stability and distribute service loads through the cover.
Yes, where the D400 configuration matches the required road installation zone and project specification. Product suitability should always be confirmed for the exact traffic and supporting conditions.
SMC does not rust like conventional ferrous materials, making it suitable for many drainage, wastewater and outdoor infrastructure applications. Specific chemical environments should still be reviewed separately.
Yes. Mechanical locking and other access-security features can be incorporated according to project requirements and engineering feasibility.
The underside structure can be reviewed for sensors or monitoring modules. Final integration depends on the selected hardware, power supply, communication method and installation environment.
Available documentation depends on the exact product configuration. Customers should specify the required approval documents during the RFQ stage so that the applicable records for MR650D can be confirmed.
Whether you require the standard MR650D or a customized round SMC manhole cover for municipal roads, drainage, utility or smart-city infrastructure, Elite can review your drawings, load requirements, quantity and technical requirements before quotation.
