Valve boxes are critical components in modern irrigation and water management systems, providing protection and accessibility to the underlying valves that regulate water flow. Proper installation of a valve box not only safeguards the valves from environmental elements and physical damage but also ensures the efficiency and longevity of the entire system. This guide offers a comprehensive examination of the installation process for various types of valve boxes, equipping professionals and enthusiasts alike with the knowledge to execute the task with precision.
Understanding the intricacies of installing an irrigation valve box is essential for maintaining optimal system performance and preventing future complications.
A valve box is a protective enclosure designed to house underground valves used in irrigation, plumbing, and utility applications. It shields the valves from external factors such as weather conditions, dirt, debris, and unauthorized tampering. Valve boxes are typically constructed from durable materials like plastic, fiberglass, or composite materials, chosen for their strength and resistance to corrosion.

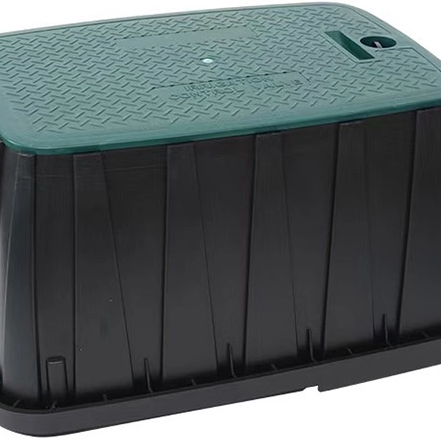

Different types of valve boxes cater to various system requirements. For instance, a rectangular valve box irrigation is commonly used in irrigation systems to accommodate multiple valves and manifold assemblies. Similarly, a sprinkler valve box is specifically designed to house sprinkler system components.
Before commencing the installation, gather all necessary tools and materials to ensure a smooth and efficient process. The following items are essential:
Shovel or trenching tool
Valve box appropriate for your system (e.g., irrigation valve box, sprinkler valve box)
Utility knife or cutting tool
Gravel or drainage aggregate
PVC pipes and fittings
Pipe glue and primer (for PVC connections)
Level
Measuring tape
Protective gloves and eyewear
Begin by determining the optimal location for the valve box. The site should provide easy access for maintenance while being strategically placed for efficient system operation. Consider proximity to the main water line, landscape features, and areas prone to foot or vehicular traffic. Mark the selected area using flags or spray paint to outline the excavation zone.
Excavate the marked area using a shovel or trenching tool. The hole should be large enough to accommodate the valve box with additional space for gravel bedding underneath and around the sides. A typical depth may range from 12 to 18 inches, depending on the size of the valve box and the depth of the existing pipes. Ensure the sides of the hole are straight and the bottom is level.
Add a layer of gravel or drainage aggregate at the bottom of the excavation site. This layer, usually about 2 to 4 inches thick, facilitates proper drainage and prevents water accumulation around the valves. Use a level to ensure the gravel base is even, which is critical for the stability of the valve box.
Install the valves and associated piping according to your irrigation system design. Connect the PVC pipes using appropriate fittings, primer, and glue, ensuring all joints are secure and leak-free. Arrange the valves so they are accessible from the top once the valve box is in place. This configuration simplifies future maintenance and adjustments.
Position the valve box over the installed valves. The box should rest firmly on the gravel base, with the top of the box flush with or slightly below the surrounding ground level to prevent it from becoming a tripping hazard. If necessary, adjust the gravel base to achieve the correct height and levelness.
For applications requiring enhanced durability, consider using a water valve box made from composite materials, which offer superior strength and longevity.
Backfill around the valve box with soil excavated earlier. As you add soil, compact it gently to eliminate air pockets and provide stability. Be careful not to dislodge the valve box or disturb the piping connections. The soil should be level with the surrounding ground and slope away slightly to divert surface water.
Remove the valve box lid and inspect the internal components to ensure everything remains properly aligned. Activate the irrigation system to test for leaks and verify that each valve operates correctly. Make any necessary adjustments to the valves or piping at this stage. Once satisfied, replace the lid securely.
When installing a valve box, consider the following best practices to enhance system performance and durability:
Choose a valve box made from materials suitable for your specific application and environmental conditions. Composite or fiberglass valve boxes are ideal for harsh environments due to their resistance to corrosion and moisture. For standard applications, high-density polyethylene (HDPE) valve boxes offer a balance between durability and cost-effectiveness.
Ensure the valve box is easily accessible for routine maintenance. It should be placed in a location that is safe for pedestrians and vehicles, avoiding areas where it may pose a hazard or be subjected to damage. Marking the valve box location on a site plan can aid in future operations.
Proper drainage around the valve box prevents water accumulation that can lead to system failures or damage. Incorporating drainage solutions such as gravel bedding and drain tiles can mitigate these risks. In areas with high water tables or heavy rainfall, additional drainage measures may be necessary.
In colder climates, protecting the valves from freezing temperatures is crucial. Insulating materials or installing the valve box below the frost line can prevent freeze-thaw cycles that may crack pipes or damage valves. Drainage of the irrigation system before winter can also protect against freezing.
Adhere to local building codes and regulations regarding underground utility installations. Regulations may dictate minimum depths, materials allowed, and safety requirements. Non-compliance can result in fines or necessitate costly modifications.
For complex systems or professional applications, consider the following advanced installation techniques:
Using a manifold allows for multiple valves to be installed in a single valve box. Manifolds can be preassembled or custom-built using PVC fittings. This configuration streamlines the irrigation system and reduces the space required for valve installation.
For systems with electric valves, ensure that wiring is correctly installed and protected. Use waterproof wire connectors and conduit where necessary to prevent electrical hazards. Labeling wires can aid in troubleshooting and maintenance.
Modern irrigation systems may integrate with smart controllers and sensors. When installing a valve box, accommodate space for additional components like moisture sensors or flow meters. Future-proofing the installation allows for easy upgrades and expansions.
Regular maintenance ensures the longevity and reliability of your customizable valve box and irrigation system. Inspect the valve box periodically for signs of damage, settling, or water ingress. Clear any debris that may obstruct access to the valves.
In the event of a leak or malfunction, the secure valve box provides convenient access for repairs. Documenting the system layout and keeping records of component specifications can expedite troubleshooting and part replacement.
Installing a durable valve box is a fundamental aspect of setting up an efficient and durable irrigation or water management system. By following the detailed steps and best practices outlined in this guide, you can ensure that your valve box serves its purpose effectively, providing protection and accessibility to vital system components.
For specialized applications, such as integrating a sprinkler system valve box, consulting with professionals or referencing manufacturer guidelines can offer additional insights. Proper installation and maintenance of valve boxes contribute significantly to the overall performance and reliability of your water management systems.
