MS330
Elite
Elite-MS330

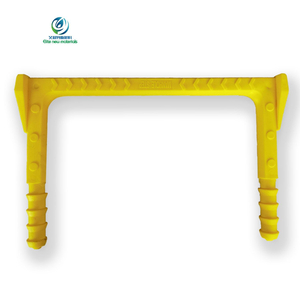

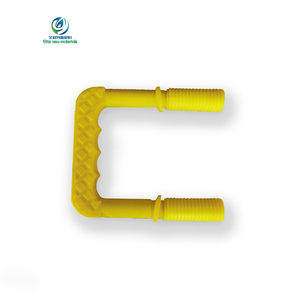

Elite PP Steel Core Manhole Steps are access components designed for safe entry and exit from underground chambers, manholes, inspection pits, and utility structures.
Each step consists of a high-strength steel reinforcement core enclosed within a durable polypropylene outer layer. This composite construction combines the structural performance of steel with the environmental resistance of polypropylene, making the steps suitable for long-term use in wet, corrosive, and underground conditions.
The molded PP surface provides an insulated, comfortable and slip-resistant contact surface for maintenance personnel, while the internal steel core maintains the mechanical strength required for repeated use.
The steps can be installed in precast concrete manholes as well as cast-in-place structures and are available in different dimensions, colors, and configurations for infrastructure projects.
The internal steel core provides the primary structural reinforcement of the step. It improves load-bearing performance and helps maintain the shape of the product during installation and repeated use.
The steel reinforcement is enclosed by a polypropylene protective layer. This non-metallic exterior reduces direct exposure of the steel core to water, sewage, salts, soil moisture and other corrosive substances commonly found in underground structures.
The step surface is designed with raised ribs to provide better traction for maintenance personnel. The textured profile helps improve footing when the surface is wet, dirty or exposed to mud and other contaminants.
The PP exterior provides a non-metallic contact surface and separates the user from the internal steel reinforcement, making the product suitable for a wide range of utility and electrical infrastructure environments.
Item | Specification / Options |
|---|---|
Product | PP Steel Core Manhole Step |
Main Structure | Steel Core + Polypropylene Coating |
Core Material | Reinforced Steel |
Outer Material | Polypropylene (PP) |
Surface | Ribbed / Anti-Slip |
Installation | Precast Concrete / Cast-in-Place |
Application | Manholes, Inspection Chambers, Utility Pits |
Dimensions | Standard sizes and customized dimensions |
Color | Multiple colors available |
Corrosion Resistance | Suitable for wet and corrosive underground environments |
Chemical Resistance | Resistant to many common sewage, salt and chemical exposures |
UV Resistance | Suitable for outdoor and exposed applications |
Customization | OEM / ODM available |
Packaging | Export packaging / Customized packaging |
Testing | Product testing available according to project requirements |
Final dimensions and technical specifications should be confirmed according to the chamber design, installation method and project requirements.
The steel core provides significantly greater structural reinforcement than a plastic-only access step, making the product suitable for demanding utility infrastructure applications.
Instead of leaving the steel surface exposed, the PP outer layer acts as a protective barrier against moisture and corrosive substances. This construction is particularly useful in sewer, drainage and wastewater environments.
The ribbed tread profile provides additional grip during climbing and maintenance activities, especially when underground access structures contain water, mud or other contaminants.
The combination of steel reinforcement and polypropylene protection is designed for repeated use in underground chambers where humidity, soil contact and chemical exposure may occur.
The exposed surface is polypropylene rather than bare metal. This can be advantageous in electrical and utility applications where a non-metallic external contact surface is preferred.
Because the steel reinforcement is protected by the PP layer, routine anti-rust treatment or repainting of the exposed steel surface is not normally required.
PP Steel Core Manhole Steps can be incorporated into a variety of underground access structures, including:
Sewer manholes
Stormwater drainage chambers
Water supply inspection chambers
Wastewater treatment facilities
Telecom cable chambers
Electrical utility chambers
Power infrastructure
Industrial inspection pits
Underground utility tunnels
Railway infrastructure
Highway drainage systems
Mining facilities
Petrochemical facilities
Municipal utility networks
They are particularly suitable for environments where conventional exposed steel steps may experience accelerated corrosion.
The steps can be incorporated into precast concrete manholes during manufacturing or installed according to the structural design of the chamber.
For cast-in-place construction, the installation configuration can be selected according to the concrete structure, wall thickness and required step spacing.
The product can be used in electrical, telecommunications, water and other underground chambers where maintenance personnel require fixed access points.
Installation dimensions and fixing methods should be determined according to the concrete structure and project drawings.
Consideration | PP Steel Core Step | Bare Steel Step |
|---|---|---|
Structural reinforcement | Steel core | Steel |
External surface | Polypropylene | Exposed metal |
Corrosion protection | PP encapsulation | Requires surface protection |
Anti-slip surface | Ribbed PP tread | Depends on design |
Maintenance | Low | May require rust treatment |
Underground wet environment | Suitable | Corrosion risk depends on coating |
Chemical exposure | Good resistance depending on chemical | Coating-dependent |
Custom colors | Available | More limited |
Non-metallic contact surface | Yes | No |
The actual service performance of any manhole step depends on material grade, dimensions, installation method, loading conditions and environmental exposure. Product selection should therefore be based on the specific project requirements.
Elite can supply standard dimensions as well as project-specific sizes. Customers can provide the required step projection, width, fixing dimensions and wall configuration for evaluation.
The required mechanical performance should be determined according to the chamber depth, access frequency, installation structure and applicable project specification. Technical parameters can be confirmed before production.
MOQ depends on the selected model, dimensions, color and customization requirements. Contact us with the estimated quantity for a project-specific quotation.
Samples can be provided for dimensional inspection, material evaluation, installation testing and customer approval before bulk production.
Production time depends on the selected model, order quantity and customization requirements. A confirmed production schedule will be provided together with the commercial quotation.
Products can be packed in cartons, bundles, pallets or other export-suitable configurations according to order quantity and transportation requirements.
OEM and ODM services are available for:
Customized dimensions
Customized colors
Product marking
Customer branding
Packaging
Project-specific structural requirements
Technical documents and product test reports can be provided according to customer and project requirements. Specific certification or testing requirements should be confirmed before quotation.
International shipments can be arranged by sea, air or other suitable transportation methods. Freight can be calculated based on order quantity, packing dimensions and destination.
For infrastructure contractors, precast concrete manufacturers and utility companies, Elite can evaluate customized manhole step requirements based on drawings or technical specifications.
Possible customization includes:
Step width
Step projection
Fixing dimensions
Overall geometry
PP color
Surface pattern
Product marking
Packaging design
OEM branding
Project-specific installation requirements
For large-volume projects, customers are encouraged to provide the manhole drawing and required installation dimensions before ordering.
To prepare an accurate offer, please provide:
Technical Information
Required step dimensions
Installation method
Concrete wall thickness
Required fixing dimensions
Required load or performance specification
Quantity
Color requirement
Applicable standard or project specification
Commercial Information
Sample requirement
Estimated annual or project quantity
Delivery destination
Required delivery date
Packaging requirements
OEM / branding requirements
Providing these details allows our team to confirm the appropriate product configuration and calculate the most suitable commercial solution.
The product consists of an internal steel reinforcement core surrounded by a polypropylene outer layer. The steel provides structural reinforcement while PP protects the exposed surface from the underground environment.
No. The steel reinforcement is enclosed within the polypropylene exterior, providing a protective barrier between the steel and the surrounding environment.
Yes. They are suitable for many sewer, drainage and wastewater access structures where resistance to moisture and corrosive conditions is required.
They can be used in electrical and utility chambers where the project specification permits this type of access step. The non-metallic PP exterior can be advantageous in such applications.
Yes. Customized dimensions and configurations can be developed according to customer drawings and project requirements.
Yes. Multiple PP colors can be offered depending on the required material grade and order quantity.
Yes. Samples can be arranged for evaluation before a bulk order, with sample cost and freight confirmed separately.
Yes. Elite supports OEM/ODM requirements including dimensions, colors, markings, packaging and project-specific configurations.
The most useful information is the required dimensions, installation method, quantity, color, application, destination and any applicable technical standard or project specification.
Underground access components are exposed to conditions that can accelerate corrosion and deterioration of conventional metal products. Elite PP Steel Core Manhole Steps use a reinforced steel structure together with a protective polypropylene exterior to address both mechanical and environmental requirements.
The result is a practical access solution for sewerage, drainage, water, telecom, electrical, industrial and other underground infrastructure.
Send us your required dimensions, installation details and estimated quantity. We can evaluate the specification and provide the appropriate product configuration and quotation.
