Elite Composite Cable Trench Grating

Technical

Elite Composite Cable Trench Grating is designed to provide a lightweight, durable and corrosion-resistant covering solution for cable corridors, fiber-optic infrastructure and electrical service areas.

The open-grid structure allows air circulation around cable installations while providing a stable walking or maintenance surface. Manufactured from composite materials, the grating is suitable for environments where moisture, chemicals and electrical insulation are important considerations.

Technical Characteristics

• Open-Grid Structure: Allows ventilation and drainage while maintaining access to the cable trench.

• Lightweight Construction: Easier to handle, install and remove compared with many conventional metal grating systems.

• Electrical Insulation: Non-metallic composite construction provides electrical insulating properties.

• Corrosion Resistance: Suitable for humid, wet and chemically exposed environments without conventional metal rusting.

• Anti-Slip Surface: Available with molded or textured surfaces to improve footing during inspection and maintenance.

• Structural Performance: Designed to provide reliable support according to the required span, loading condition and panel configuration.

• Custom Dimensions: Panels can be manufactured according to trench width, length and installation requirements.

• Long-Term Outdoor Use: Suitable for utility areas exposed to moisture, weather and changing environmental conditions.

The final panel thickness, dimensions, span and load capacity should be selected according to the trench structure and project requirements.

Commercial

Dimensions

Standard panel sizes can be supplied, while customized lengths and widths are available for project-specific cable trench configurations.

Load Requirement

Load capacity can be designed according to the expected pedestrian traffic, maintenance loads and installation span. Customers can provide the required loading condition for technical evaluation.

MOQ

MOQ depends on panel dimensions, model, surface configuration and customization requirements. Project quantities can be confirmed before quotation.

Lead Time

Production time depends on the selected specification, quantity and customization requirements. The confirmed lead time will be provided with the quotation.

Sample

Samples can be supplied for material evaluation, dimensional checking, installation trials and project approval.

Packaging

Panels can be bundled, palletized or packed according to the transportation method and customer requirements.

OEM / ODM

Elite supports customized composite grating solutions, including:

• Panel dimensions

• Thickness

• Surface pattern

• Color

• Product marking

• Customer logo

• Packaging

• Project-specific structural requirements

Custom Mold / Tooling

For special panel configurations or non-standard designs, dedicated tooling can be developed according to customer drawings and project requirements.

Certification & Testing

Product testing and technical documentation can be provided according to the applicable project specification and customer requirements.

Shipping

International orders can be arranged by sea, air or other suitable transportation methods. Shipping costs can be calculated according to the final quantity, packaging and destination.

Project

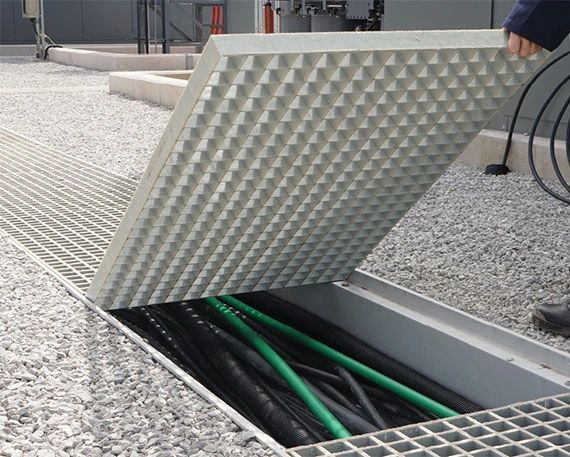

Cable Corridors

Used as removable trench panels for underground or indoor cable corridors, providing access for inspection and maintenance while allowing ventilation within the trench.

Fiber Optic Rooms

Suitable for communication and fiber-optic infrastructure where lightweight, non-metallic and corrosion-resistant access panels are required.

Power Distribution Areas

Applicable to electrical distribution zones, cable trenches and service areas around power equipment where electrical insulation and environmental resistance are important.

Data Centers

Can be used for cable management areas, power distribution corridors and utility trenches within data center facilities.

Telecom Infrastructure

Suitable for cable pathways, communication rooms and underground telecom networks requiring organized access to fiber and communication cables.

Industrial Facilities

Applicable to factories, substations, utility corridors and industrial service areas where conventional metal grating may be exposed to moisture or corrosive conditions.

Purchasing Information

For an accurate technical and commercial proposal, customers are recommended to provide:

• Trench width

• Required panel length

• Required span

• Expected load

• Installation environment

• Required panel thickness

• Surface requirement

• Color requirement

• Estimated quantity

• Project location

• Applicable standard or specification

• Project drawing, if available

Elite can evaluate the trench dimensions and loading conditions to recommend a suitable composite grating configuration.

Lightweight / Ventilated / Electrically Insulating / Corrosion Resistant

Elite Composite Cable Trench Grating combines an open-grid structure with the inherent characteristics of composite materials to provide practical access for modern cable and utility infrastructure.

Its lightweight construction simplifies handling, while the open design supports ventilation and drainage. The non-metallic structure provides electrical insulation and resistance to corrosion, making it suitable for cable corridors, fiber-optic facilities, power distribution areas, data centers and industrial utility systems.
