Ever wondered how manhole steps ensure safe underground access? Understanding their dimensions is key. Misreading technical drawings can lead to costly mistakes.
A manhole step is a sturdy rung embedded in manholes for climbing. Knowing its dimensions guarantees proper fit and safety.
In this post, you’ll learn what manhole steps are, why their sizes matter, and how to read their technical drawings correctly.
Table of Contents
Manhole steps are critical for safe access inside manholes. Their materials and construction must ensure strength, durability, and resistance to harsh underground environments.
Most manhole steps are made from copolymer polypropylene, a tough plastic known for its excellent resistance to corrosion and chemicals. This material stands up well in manholes, where exposure to sulfuric acid and hydrogen sulfide gases is common. Tests show polypropylene can resist up to 50% hydrogen sulfide or sulfuric acid at temperatures reaching 120°F. Its long-lasting nature means it can last as long as the manhole itself.
The polypropylene used follows strict standards, such as ASTM D-4101 PP0344B3353402, ensuring consistent quality and performance. This plastic also offers a lightweight yet strong solution, making installation easier without compromising safety.
While the step's outer material is plastic, it is internally reinforced with steel rods to provide the necessary strength. Typically, a 1/2-inch deformed steel reinforcing rod is embedded inside the polypropylene step. The steel is grade 60, conforming to ASTM A-615 standards, guaranteeing high tensile strength and durability.
For some larger or specialized models, a thicker 5/8-inch steel rod may be used for added reinforcement. This combination of plastic and steel creates a step that resists bending or breaking under heavy loads.
Manholes expose steps to moisture, corrosive gases, and physical wear. Copolymer polypropylene's chemical resistance protects the step from degradation over time. The steel reinforcement inside is fully encapsulated by the plastic, preventing direct contact with corrosive elements and reducing rust risk.
Additionally, manhole steps undergo rigorous testing to meet vertical load and pullout strength requirements. They must withstand an 800-pound vertical load with minimal deflection and at least 400 pounds of pullout force, ensuring safety during use.
This robust construction allows steps to maintain integrity in aggressive environments without needing grout or epoxy for installation, thanks to press-fit designs that lock securely in place.
Note: Using copolymer polypropylene combined with grade 60 steel reinforcement ensures manhole steps deliver long-term durability and corrosion resistance in harsh underground conditions.
Understanding manhole step dimensions is crucial for selecting the right step for your project. These dimensions ensure safe access and proper fit in manhole structures. Let’s explore the typical measurements, differences between step types, and popular models.
Manhole steps come in standard sizes, defined by three main dimensions:
Tread Width: The horizontal surface where users place their foot. For common models like the PS1-PF, the tread width is about 10¾ inches (273 mm). Larger steps, such as the PS3-PFC, have tread widths up to 16¾ inches (425 mm) for more surface area.
Projection: How far the step extends from the manhole wall. This typically ranges from 5¼ inches (133 mm) to 7 inches (177 mm), depending on the model. For example, the PS2-PF projects about 6 inches (152 mm).
Leg Center: The distance between the two legs or points where the step anchors into the manhole wall. Common leg center dimensions are 10 inches (254 mm) for smaller steps and up to 16 inches (406 mm) for larger models like the PS3-PFC.
These measurements ensure the step fits securely into preformed holes and provides enough space for safe footing.
Manhole steps come as either single-faced or double-faced:
Single-Faced Steps: Feature a tread on one side only. They are installed so the tread faces inward for climbing. These steps are straightforward and commonly used in standard manholes.
Double-Faced Steps: Have treads on both sides, allowing installation with either side facing up. This design eliminates installation errors where steps might be placed upside down. Double-faced models often share similar dimensions with their single-faced counterparts but offer more installation flexibility.
For example, the PS1-PF-DF is the double-faced version of the PS1-PF, maintaining a tread width of about 10½ inches (267 mm) and a leg center of 10 inches (254 mm).
Several models dominate the market, each designed for specific applications and manhole sizes:
Model | Tread Width (in) | Projection (in) | Leg Center (in) | Notes |
|---|---|---|---|---|
PS1-PF | 10.75 | 5.75 | 10 | Standard single-faced step |
PS1-PF-DF | 10.5 | 5.75 | 10 | Double-faced version of PS1-PF |
PS2-PF | 14 | 6 | 13 | Larger step for wider manholes |
PS2-PF-DF | 13.5 | 5.875 | 13 | Double-faced version of PS2-PF |
PS3-PFC | 16.75 | 7 | 16 | Heavy-duty step with larger dimensions |
PS12-PF-DF | 12.5 | 5.875 | 12 | Mid-size double-faced step |
PS2-PF-DRP | 11.8125 | 6.4375 | 13 | Drop front step for specialized access |
These steps are designed for press-fit installation into preformed holes, requiring a minimum embedment of 3 inches into the concrete. The variety in size and design allows for customization based on manhole diameter and user needs.
Note: Double-faced manhole steps reduce installation errors by allowing placement with either side up, improving safety and efficiency on job sites.

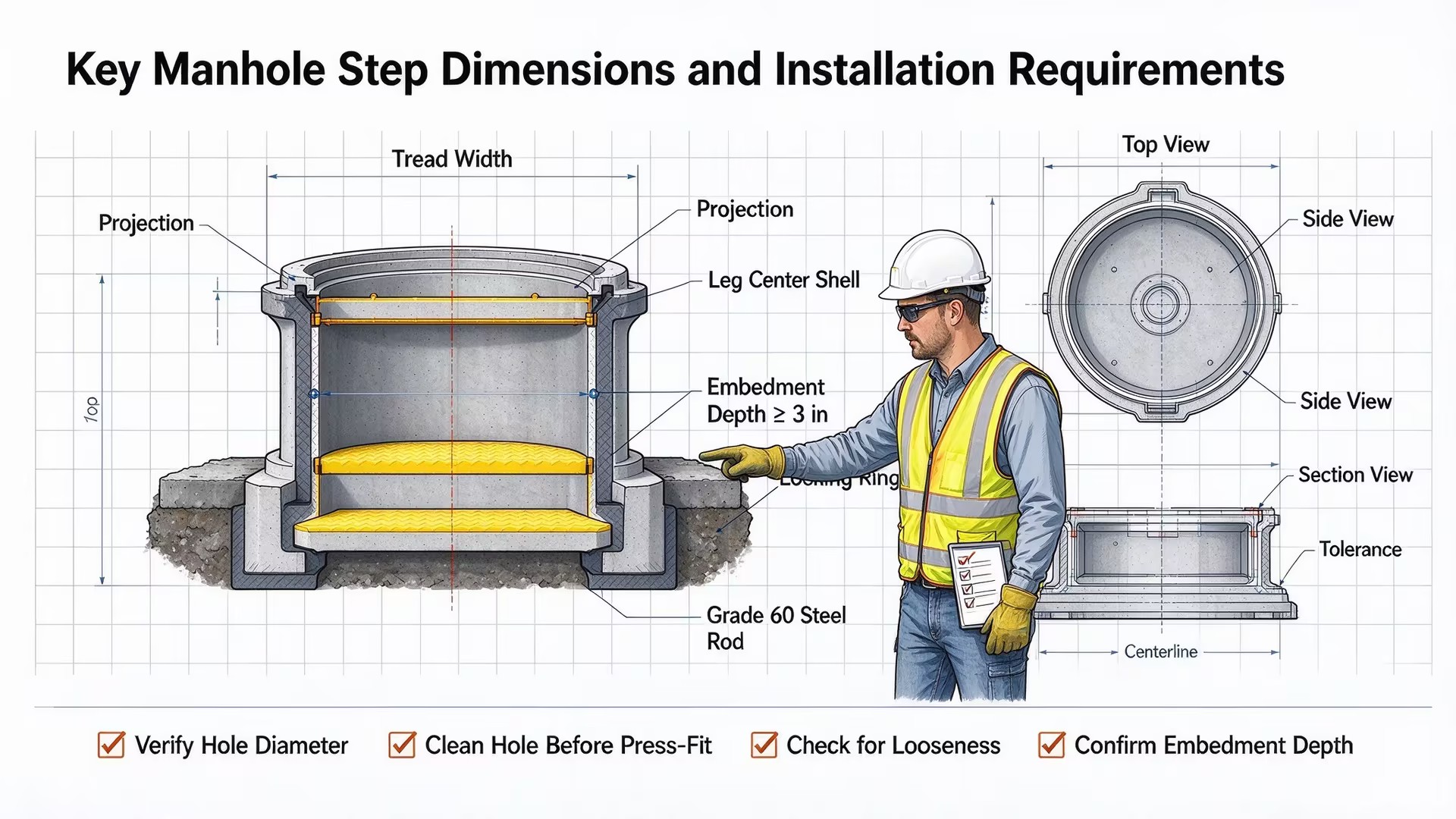

Understanding manhole step technical drawings is essential for engineers, contractors, and installers. These drawings provide precise details needed for selecting, installing, and verifying manhole steps. Let’s break down how to identify key dimensions, interpret symbols, and understand installation requirements.
Technical drawings of manhole steps highlight several critical dimensions:
Tread Width: This is the horizontal surface where the foot rests. It’s typically shown as a top-down measurement across the step’s flat area. For example, a PS1-PF step has a tread width around 10¾ inches (273 mm).
Projection: The distance the step extends outward from the manhole wall. This dimension appears on side views and usually ranges from about 5¼ inches (133 mm) to 7 inches (177 mm).
Leg Center: The spacing between the two legs that anchor the step into the manhole wall. It’s a crucial measurement for ensuring the step fits securely into preformed holes. Common leg center dimensions are 10 inches (254 mm) or 13 inches (330 mm), depending on the model.
Embedment Depth: This shows how deep the step legs must be embedded into the concrete or insert. Most manhole steps require a minimum embedment of 3 inches for secure press-fit installation.
Drawings often include multiple views—top, side, and sometimes sectional—to clearly display these dimensions.
Technical drawings use standardized symbols and notation to convey information efficiently:
Dimension Lines: Thin lines terminated by arrowheads, indicating the extent of a measurement. Numbers placed near these lines show the exact size.
Centerlines: Dashed or dotted lines mark symmetry axes or centers of holes for step legs.
Section Lines: Diagonal hatching or shading indicates a cut surface in sectional views, helping visualize internal reinforcement or embedment.
Material Notes: Abbreviations like “PP” for polypropylene or “Stl” for steel specify materials used.
Tolerance Indicators: Plus/minus values show acceptable variation in dimensions, ensuring parts fit correctly.
Familiarity with these symbols helps avoid misinterpretation and installation errors.
Manhole step drawings often include installation notes:
Press-Fit Installation: Steps are driven into preformed holes in cured concrete. Drawings indicate hole diameter and embedment depth. The locking rings on the step legs create friction to hold them securely without grout or epoxy.
Casting in Place vs. Dry Cast: Some steps are designed for casting into green (uncured) concrete, while others fit into dry cast operations. Drawings specify which method applies.
Hole Preparation: Details about hole shape (cylindrical or tapered), diameter, and positioning ensure the step fits tightly and aligns properly.
Double-Faced Steps: Drawings note if the step is double-faced, meaning it can be installed in either orientation, reducing installation errors.
By carefully reviewing these details on technical drawings, teams ensure steps meet safety and performance standards.
Tip: Always cross-check manhole step drawings against project specifications and installation guides to ensure correct dimensions and embedment depth before ordering or installing steps.
Manhole steps must be installed securely to ensure safe access and long-term performance. Proper installation methods prevent loosening, slipping, or failure under load. This section covers the main installation techniques and best practices to achieve consistent, tight fits without grout or epoxy.
The most common and effective method is the press-fit installation. Steps are driven directly into preformed holes in cured concrete walls or inserts. The holes are sized slightly smaller than the step legs, creating a tight friction fit.
Key points:
Hole Preparation: Use a drill, step insert, or cam pin to create clean, round holes matching the step leg diameter, typically 1 inch or 1¼ inches depending on the model.
Embedment Depth: Legs should embed at least 3 inches into the concrete for secure anchoring.
Locking Rings: Many steps have molded locking rings on their legs. When pressed into the hole, these rings create positive friction that resists pullout.
No Grout or Epoxy Needed: The friction lock eliminates the need for grout, epoxy, or additional adhesives, simplifying installation and reducing costs.
Installation Tool: A mallet or hammer is used to drive the step legs into the holes, ensuring full embedment.
This method provides excellent pullout strength (minimum 400 lbs) and vertical load capacity (800 lbs with minimal deflection), meeting ASTM and OSHA standards.
Some projects prefer casting steps directly into green (uncured) concrete during manhole construction:
Cast-in-Place Steps: These are placed before concrete sets. The legs embed as the concrete cures, creating a permanent bond. This method suits steps designed for casting only, such as certain PS1 models.
Dry Cast Operations: Steps are installed into dry or partially cured concrete. Specialized steps with specific embedment lengths and leg designs ensure tight fits without grout or epoxy.
Choosing between casting and press-fit depends on project timing, manhole material, and installer preference. Cast-in-place may offer slightly stronger bonds but requires precise timing. Press-fit allows installation after concrete has cured, offering more flexibility.
To achieve reliable, tight installations without grout or epoxy:
Use Correct Hole Size: Follow manufacturer specifications for hole diameter and leg embedment depth.
Clean Holes: Remove dust and debris before installing steps to maximize friction.
Check Step Orientation: For double-faced steps, orientation is flexible. Single-faced steps must be installed with the tread facing inward.
Drive Legs Fully: Use a mallet to seat legs completely into holes, engaging locking rings.
Inspect After Installation: Verify no wobble or looseness. Steps should resist manual pullout.
Following these best practices ensures steps remain secure over the manhole’s lifespan, resisting corrosion and mechanical wear.
Tip: Always verify hole diameters and embedment depths against the specific manhole step model’s technical drawing before installation to guarantee a secure, grout-free press fit.
Manhole steps must meet strict load and safety standards to ensure they hold up under heavy use and harsh conditions. These standards protect workers who rely on the steps to enter and exit manholes safely. Let’s explore the key requirements for vertical load, pullout strength, impact resistance, and compliance with OSHA and ASTM regulations.
Manhole steps undergo vertical load testing to confirm they can safely support a worker’s weight without excessive bending. The industry standard requires steps to withstand a vertical load of 800 pounds. During this test, the step should not deflect more than 1/2 inch under the load. This ensures the step remains stable and secure when stepped on.
The combination of copolymer polypropylene and steel reinforcement helps the step resist bending. The steel rod inside, typically 1/2-inch grade 60 rebar, provides the strength needed to meet this vertical load criterion. Steps that fail this test pose a safety hazard and are not suitable for use.
Beyond vertical load, manhole steps must resist being pulled out from their mounting holes. The minimum required pullout strength is 400 pounds, meaning it takes at least this much force to dislodge the step from the concrete. This pullout resistance comes from the press-fit design and locking rings on the step legs, which create strong friction with the hole walls.
Impact resistance is another critical factor. Steps should withstand impacts up to 300 foot-pounds with only minor deflection and no cracking or breaking. This protects the step from damage if struck accidentally during installation or maintenance activities.
Regular field testing ensures steps maintain these pullout and impact strengths throughout their service life. These standards help prevent accidents caused by step failure.
Manhole steps must comply with safety regulations set by OSHA (Occupational Safety and Health Administration) and ASTM (American Society for Testing and Materials).
OSHA: While OSHA’s fixed ladder standard excludes manhole steps explicitly, it requires that embedded steps be safe, well-constructed, and installed per good engineering practices. This means steps must meet recognized performance standards even if not directly regulated.
ASTM: Manhole steps typically follow ASTM C478, which covers precast concrete manhole components, including embedded steps. Steps also meet material specifications like ASTM D4101 for polypropylene and ASTM A615 for steel reinforcement.
Manufacturers often participate in ASTM committees to ensure their products meet or exceed these standards. Using compliant steps helps contractors and engineers avoid liability and ensures worker safety.
Tip: Always verify that manhole steps have been tested to meet or exceed 800 lbs vertical load, 400 lbs pullout strength, and impact resistance standards before specifying or installing them to guarantee safety and durability.
Manhole steps come in a variety of models, each designed for specific manhole sizes and installation needs. Knowing these models helps you select the right step for your project, ensuring safety and compatibility.
The most common manhole step models include PS1, PS2, and PS3, each offering different dimensions and features:
PS1 Series: These are smaller steps, typically with a tread width of about 10¾ inches and a leg center of 10 inches. They fit smaller manholes and are often used for standard access points. They come in single-faced (PS1-PF) and double-faced (PS1-PF-DF) versions, allowing flexible installation.
PS2 Series: These steps are larger, around 14 inches tread width and 13 inches leg center. They suit wider manholes and offer more surface area for footing. Variants include the PS2-PF (single-faced), PS2-PF-DF (double-faced), and specialized steps like the PS2-PF-DRP, which features a drop front for easier access.
PS3 Series: These heavy-duty steps have the largest dimensions, with a tread width of about 16¾ inches and a leg center of 16 inches. They are designed for large-diameter manholes requiring robust support.
Other models include specialty steps like the PS12-PF-DF, a mid-size double-faced step, and straight-legged steps such as the PFS-1 and PFS-2, which have non-tapered legs for specific hole types.
Choosing the correct step depends largely on the manhole's inside diameter and wall thickness:
For smaller manholes (around 30 to 48 inches diameter), PS1 steps provide adequate support and fit well.
Medium-sized manholes (48 to 72 inches) benefit from PS2 steps, offering a wider tread and greater projection.
Large manholes (72 inches and above) require PS3 or similar heavy-duty steps to ensure safety and durability.
Always consider the leg center dimension to match the preformed holes in the manhole wall. Proper fit ensures a secure press-fit installation without grout or epoxy.
Certain manhole steps include additional features for improved functionality:
Hand Holds: Some steps, such as the PS2-PF-HH, have integrated hand holds. These provide extra grip and support when climbing or entering the manhole, enhancing safety.
Drop Front Steps: The PS2-PF-DRP model includes a drop front design. The front of the step hangs down slightly, making it easier to step onto from the ground or ladder.
These specialty steps address specific access challenges and can be selected based on project requirements.
Tip: When specifying manhole steps, always verify the manhole diameter and wall thickness first, then choose a step model with matching tread width and leg center dimensions for a secure, safe fit.
Manhole steps are vital for safe access inside manholes, so keeping them in good condition is essential. Regular inspection and maintenance help prevent accidents and costly repairs. Here’s how to spot problems, replace worn steps, and take preventive actions for long-lasting performance.
Watch for these common signs that a manhole step needs attention:
Cracks or Breaks: Look for visible cracks or fractures in the polypropylene tread or legs. Damage can compromise strength and safety.
Loose or Wobbly Steps: If a step moves when pushed or feels unstable, it may have lost its press-fit tightness or the locking rings may be worn.
Corrosion on Steel Reinforcement: Although steel rods are encapsulated, corrosion can sometimes occur if the plastic shell is damaged.
Excessive Deflection: Steps bending more than normal under load indicate weakening of materials or internal reinforcement.
Missing Steps: Steps pulled out or broken off pose a serious hazard and require immediate replacement.
Surface Wear: Smooth or worn treads reduce slip resistance, increasing fall risk.
Regular inspections should include checking these conditions, especially after heavy use or environmental exposure.
When a step shows signs of failure, replace it promptly using these guidelines:
Remove the Old Step: Use a hammer and punch or similar tool to drive out the worn or broken step from its hole.
Prepare the Hole: Clean debris and inspect the hole for damage. If the hole is enlarged or irregular, it may need patching or resizing.
Select the Correct Replacement Step: Match the leg center, tread width, and leg diameter to the original step and manhole specifications.
Install the New Step: Drive the new step into the preformed hole using a mallet, ensuring the locking rings engage fully for a tight press fit.
Verify Security: After installation, test for wobble or looseness. The step should resist manual pullout and feel solid.
Avoid using grout or epoxy unless specified by the manufacturer. The press-fit design provides sufficient holding power when installed correctly.
Taking proactive steps extends the life of manhole steps and ensures safety:
Use Double-Faced Steps: These reduce installation errors by allowing either side up, preventing upside-down placement.
Follow Proper Installation Practices: Ensure hole size, embedment depth, and orientation meet manufacturer specs.
Regular Inspections: Schedule periodic checks for wear, corrosion, and stability.
Avoid Overloading: Adhere to load limits (typically 800 lbs vertical load) to prevent damage.
Protect from Impact: Minimize heavy impacts during installation or maintenance to avoid cracking.
Maintain Cleanliness: Remove debris or buildup around steps to prevent corrosion or wear.
By combining proper installation, routine inspection, and timely replacement, manhole steps can remain safe and functional for many years.
Tip: Schedule regular inspections of manhole steps after installation and following heavy use to catch wear early and maintain safe access.
Mastering manhole step dimensions and technical drawings ensures safe, proper installation and use. Understanding tread width, projection, and leg center helps select the right step for each manhole. Accurate interpretation of drawings prevents installation errors and promotes safety. Proper specification and installation guarantee durability and compliance with safety standards. For expert guidance and high-quality products, trust Elite New Materials, whose manhole steps combine corrosion resistance with strong steel reinforcement for lasting performance. Their solutions support secure, efficient manhole access in demanding environments.
A: A manhole step is a safety device installed inside manholes to provide secure footing. They are typically made from copolymer polypropylene for corrosion resistance, reinforced internally with grade 60 steel rods for strength.
A: Key dimensions include tread width (foot placement surface), projection (how far the step extends), leg center (distance between anchoring points), and embedment depth (how deep legs go into concrete).
A: Double-faced manhole steps allow installation with either side up, reducing errors and improving safety, while single-faced steps must be oriented correctly.
A: Press-fit installation into preformed holes is common, using locking rings on legs for secure, grout-free anchoring.
A: Manhole steps must support at least 800 pounds vertical load and resist 400 pounds pullout force per safety standards.
A: Signs include cracks, looseness, corrosion, excessive bending, missing steps, or worn tread surfaces.
A: Costs vary by size and features; larger or specialty steps like drop front or hand hold models typically cost more due to added materials and design complexity.
A: Use correct installation practices, choose double-faced steps to avoid errors, inspect regularly, and avoid overloading or impacts.
