Buying EN 13101 manhole steps requires more than checking a product name or asking whether a supplier says the step is “EN 13101 compliant.” Infrastructure buyers should confirm the step type, performance class, material and corrosion protection, dimensions, fixing arrangement, test documentation, marking, and production traceability before placing an order.
EN 13101 covers steps used as access components in manholes and other underground man-entry chambers. It addresses mechanical stability, protection against falling, materials, dimensions, testing, marking, and evaluation of conformity. The standard can be relevant to sewage and surface-water applications, while national requirements and project specifications may add further conditions.
Do not confuse EN 13101 manhole step classifications with road-load classes used for manhole covers.
Confirm whether the project requires a single or double step, Type A, B, C or D geometry, and the appropriate Class I or Class II performance designation.
Check the material and corrosion-protection system against the chamber environment. For coated products, coating integrity is part of the durability assessment.
Review dimensions, stand-off distance, tread design, fixing method and compatibility with the chamber before ordering.
Request product-specific performance documentation and traceability rather than relying on a generic certificate or marketing statement.
For EU projects where CE marking applies, confirm the relevant CE information and Declaration of Performance for the exact product supplied.
The first purchasing check is scope. EN 13101 applies to steps manufactured from specified cast iron, steel or aluminium materials for use in underground man-entry chambers. The standard also includes requirements for protection systems such as plastic encapsulation and galvanizing where applicable.
This distinction matters when buying polypropylene-coated products. A PP-coated steel manhole step is not simply a plastic step: the steel core provides structural support while the polymer encapsulation protects the core and provides the exposed surface.
For example, this DIN 19555 PP-coated steel manhole step uses a steel core with an external polymer coating for underground access applications. Buyers should verify the actual product construction rather than relying only on a broad material label.
A quotation or technical data sheet should identify the product clearly enough to connect it with the relevant performance documentation. Useful information includes:
Manufacturer and product model.
EN 13101 reference.
Single-step or double-step configuration.
Step Type A, B, C or D.
Class I or Class II where applicable.
Core material and protective system.
Dimensions and fixing arrangement.
One of the easiest procurement mistakes is confusing the classification of the manhole step with the load classification of the manhole cover above it.
A15, B125, C250, D400, E600 and F900 are familiar infrastructure terms because they are used when selecting access covers and gratings for different surface traffic conditions. They should not be copied directly into an EN 13101 manhole step specification.
Under EN 13101, Types A through D relate to tread shape, patterned surface and whether the step incorporates an upstand intended to reduce lateral foot slip.
Type | Patterned Surface | Upstand |
|---|---|---|
Type A | No | No |
Type B | No | Yes |
Type C | Yes | No |
Type D | Yes | Yes |
The project specification may call for a particular design, such as a Type D double step with a patterned tread and upstands. Buyers should match the order to the specified configuration rather than simply requesting an “EN 13101 step.”
EN 13101 also uses Class I and Class II in relation to vertical loading performance and permanent deformation. Class II additionally relates to steps designed so they can be replaced during maintenance according to the manufacturer's instructions.
This is separate from the load classification of a surface cover. A D400 manhole cover, for example, does not automatically mean the internal manhole steps need a corresponding “D400 step class.” Each component should be specified under the standard that applies to it.

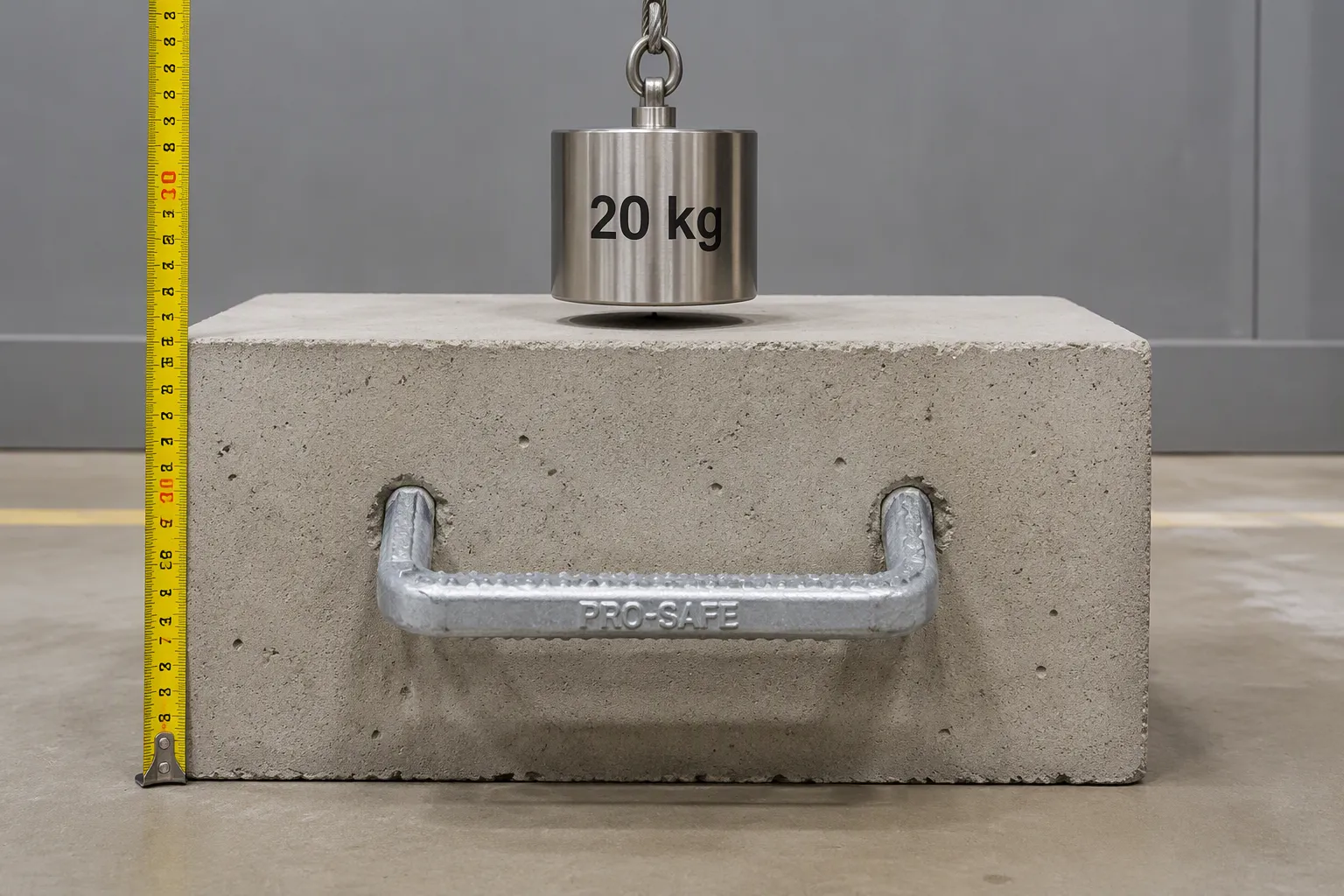

EN 13101 is a performance standard, so purchasing should go beyond checking dimensions and appearance. Depending on the material and construction, the standard addresses characteristics such as vertical loading, pull-out or anchorage resistance, twist, impact performance, proof loading for certain cast-iron products, and the integrity of protective systems.
Vertical loading evaluates how the step behaves when a downward force is applied to the tread. For ductile materials, the standard considers both deflection under load and permanent deformation after the load is removed.
This is more useful than a vague statement such as “heavy duty.” Ask the supplier for the declared test performance of the exact step model and confirm that its Type and Class match the project specification.
A step can remain structurally intact and still become unsafe if it pulls away from the chamber wall. EN 13101 therefore addresses pull-out or anchorage performance separately from vertical loading.
When reviewing a report, check that the fixing arrangement in the test corresponds to the product being purchased. A cast-in step, a post-installed step and a replaceable step may use different anchorage arrangements.
Additional testing can address twisting, impact and, for plastic-encapsulated steps, the integrity and thickness of the polymer protection. These characteristics help buyers evaluate the complete product rather than only the steel core.
Ask for test documentation that identifies the manufacturer, model, material, dimensions and test specimen clearly. Generic laboratory paperwork that cannot be linked to the product being supplied is much less useful during project approval.
EN 13101 steps may be manufactured from different approved metallic systems, and the correct choice depends partly on the underground environment. Sewage, surface water, groundwater, industrial effluent, salt exposure and other contaminants can create very different corrosion conditions.
Plastic-encapsulated steel combines the mechanical role of a steel core with a polymer barrier around the exposed portion. For this construction, procurement should include checks on the core material, encapsulation condition, tread geometry and consistency of the molded surface.
The protective principle is explained further in our article on how PP coating protects steel manhole steps from corrosion.
Stainless steel obtains its corrosion resistance from the alloy rather than an external polymer barrier. Galvanized or otherwise protected carbon-steel products depend on the specified protective system.
Avoid selecting material solely from a broad statement such as “sewer resistant.” Instead, provide the supplier with information about the intended chamber environment and ask whether additional corrosion protection is required.
This application-first approach is important because EN 13101 itself notes that particularly corrosive environments, such as some industrial effluents, can require additional protection.
A compliant step can still be unsuitable for a project if its dimensions or fixing arrangement do not match the chamber design. Before purchasing, compare the supplier's drawing with the precast unit, masonry wall or other structure into which the steps will be installed.
Review the tread length, tread width, stand-off distance, fixing tail dimensions and, where applicable, the dimensions of the upstands. The step needs enough usable tread while maintaining the required relationship to the chamber wall.
Do not use the nominal manhole diameter as the only dimensional check. Internal geometry, wall curvature, fixing location and chamber construction can all affect fit.
The tread surface should correspond to the Type specified for the project. Where a patterned surface or upstand is required, inspect the actual geometry rather than relying on a product photograph.
A sample can be useful for evaluating molding consistency, visible defects and tread quality. The same general principle applies to other anti-slip infrastructure products, including this anti-slip composite manhole cover: the actual surface construction matters more than the phrase “anti-slip” in a product name.
EN 13101 requires steps to be installed in accordance with the manufacturer's instructions together with applicable national requirements. Buyers should therefore obtain installation instructions before the order is finalized.
Check whether the step is intended for factory installation into precast concrete, installation during construction, post-installation into an existing wall, or replacement of an existing step. The fixing configuration should match the actual project method.

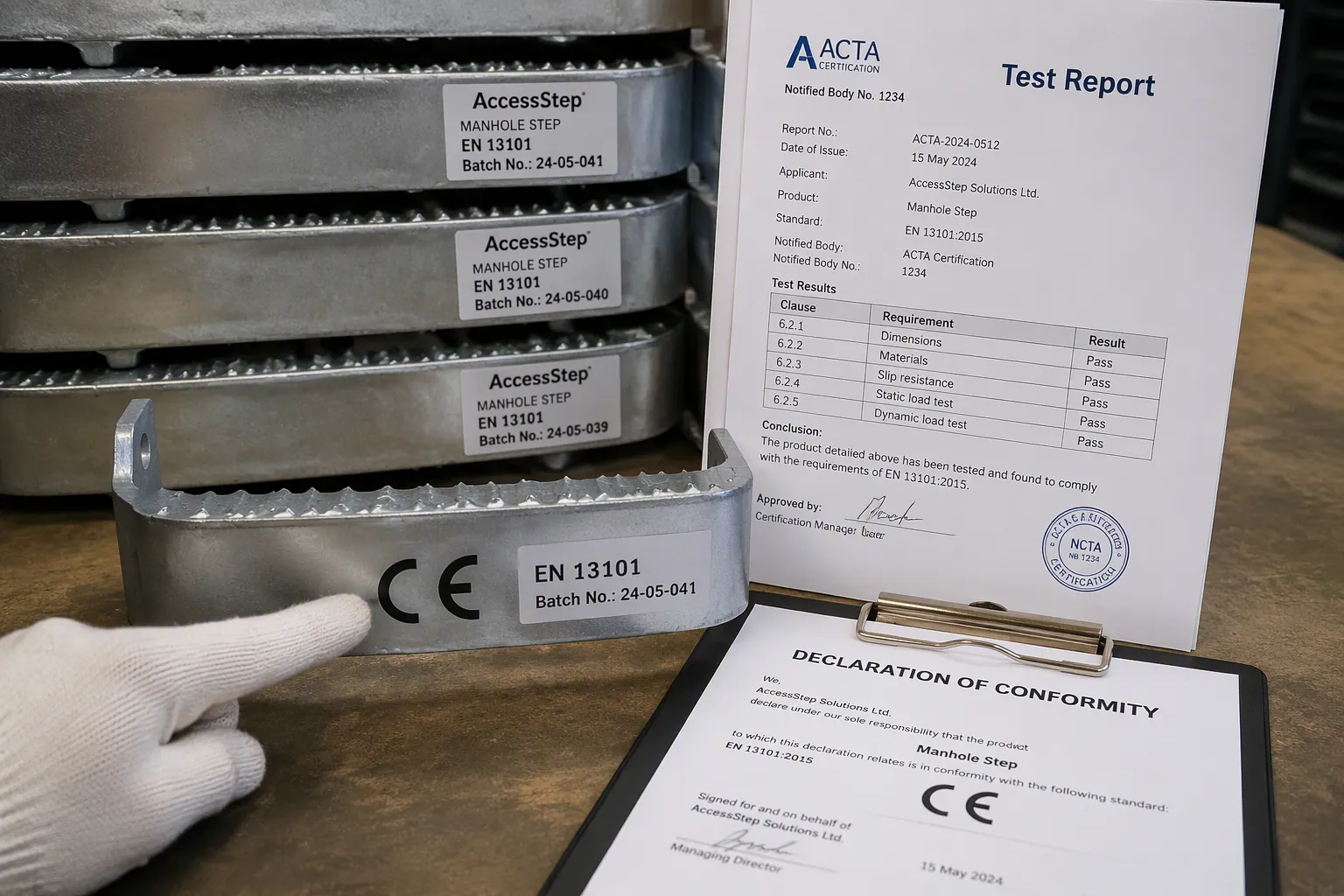

The final check is documentation. A supplier saying “EN 13101 compliant” is not the same as providing records that identify and support the product being delivered.
EN 13101 includes marking requirements intended to identify the standard, manufacturer, material and product Type and Class. Ask the supplier how these markings appear on the product or packaging and make sure they correspond to the quotation and technical drawing.
For products placed on the EU market where the harmonized construction-product requirements apply, procurement documentation should include the appropriate CE information and Declaration of Performance rather than relying on an informal “certificate of conformity.”
The Declaration of Performance should identify the product type and connect the declared characteristics to the relevant standard. Buyers should check that the document corresponds to the actual model being supplied rather than to another product in the manufacturer's range.
Documentation requirements outside the EU may differ. UK, national water authority, municipal or project-specific specifications can add their own approval, marking or certification requirements.
EN 13101 includes initial type testing and factory production control. This makes ongoing production control more important than having a single old laboratory report on file.
For larger infrastructure orders, ask how the manufacturer links production batches to inspection and test records. Batch or lot identification can help the buyer trace the supplied products if a quality issue is discovered later.
Technical documentation, product drawings and support information may also be reviewed through the supplier's support resources.
ISO 9001 certification can provide evidence that a manufacturer operates a documented quality-management system, but it does not by itself prove that a particular manhole step complies with EN 13101.
A stronger purchasing review combines the supplier's quality-system information with product-specific drawings, declarations, test evidence, marking and traceability.
If possible, obtain a production sample before a large order. Review the molding or finish, tread geometry, visible encapsulation defects, exposed metal, fixing tails and overall dimensional consistency. Compare the sample with the approved drawing instead of judging it only by appearance.
Check | What to Confirm | Evidence to Request |
|---|---|---|
Standard scope | Product construction and intended underground use | Data sheet and product designation |
Type and Class | Single/double, Type A-D, Class I/II as specified | Technical drawing and marking |
Mechanical performance | Applicable load, anchorage, twist and impact performance | Product-specific test results |
Material | Core material and corrosion-protection system | Material specification and coating information |
Dimensions | Tread, stand-off, tails and chamber compatibility | Dimensioned drawing |
Documentation | Marking, DoP where applicable and traceability | DoP, batch records and installation instructions |
A supplier can provide a more accurate recommendation when the inquiry contains enough project information. Before requesting a quotation for EN 13101 manhole steps, prepare:
Required EN 13101 Type and Class, if already specified.
Single-step or double-step requirement.
Chamber drawing and wall construction.
Required tread and stand-off dimensions.
Installation method.
Sewage, stormwater, utility or other operating environment.
Known corrosive or chemical exposure.
Required test, approval and project documentation.
Order quantity and required batch traceability.
This information allows the manufacturer to evaluate whether an existing product is suitable or whether dimensions, coating, fixing details or other features need to be adjusted. Elite New Materials supplies composite infrastructure products and underground access components for different project requirements.
The same specification discipline should be applied to the complete access system. Step requirements are separate from surface-cover requirements, so buyers should also verify the applicable specifications for manhole covers rather than assuming one standard controls both components.
EN 13101 covers requirements, marking, testing and evaluation of conformity for specified metal manhole steps used as access components in underground man-entry chambers. It addresses characteristics such as materials, dimensions, mechanical stability, anchorage, surface design and production conformity.
No. Those familiar classes relate to access covers and gratings rather than the classification of EN 13101 manhole steps. EN 13101 uses its own step Types and Class I/Class II performance designations. Buyers should not transfer the surface-cover traffic class directly to the internal access steps.
The Types describe tread geometry. They distinguish between circular or other tread shapes, patterned or non-patterned surfaces, and designs with or without upstands intended to limit lateral foot slip. The required Type should be confirmed from the project specification.
Request a technical drawing, product identification, relevant performance test evidence, material information, installation instructions and traceability records. For EU construction products where applicable, also verify the CE information and Declaration of Performance for the exact product supplied.
No. ISO 9001 relates to the supplier's quality-management system. It does not by itself demonstrate the performance of a particular manhole step. Product-specific evidence should still be reviewed.
Plastic-encapsulated steel steps are addressed within EN 13101 when the underlying product and materials fall within the standard's scope. The polymer encapsulation acts as a protective system around the structural metal core, and the standard includes relevant requirements for encapsulated products.
Road traffic is primarily relevant to the surface cover and frame specification. The internal step should instead be selected according to the EN 13101 requirements, project specification, chamber geometry, intended use, fixing arrangement and environmental exposure.
