Traditional municipal infrastructure faces a massive turning point today. Heavy metal covers present constant challenges across work sites, ranging from severe structural corrosion to serious worker injury risks. Aging utility networks simply cannot keep up with the demands of modern traffic loads and aggressive environmental conditions.
Project managers now recognize heavy cast iron creates long-term operational liabilities. Rapid urbanization demands smarter materials. Modern infrastructure requires components capable of meeting strict safety regulations while preventing utility theft and dangerous environmental leaks. You need solutions built to survive harsh industrial realities without constant intervention.
This guide provides an objective, engineering-focused breakdown of advanced polymer covers. You will learn how to evaluate material feasibility, ensure strict specification compliance, and select the exact composite manhole cover for your next infrastructure upgrade. By understanding the underlying material science, you can confidently specify components aligned with modern engineering standards.
Weight & Safety: Weigh up to 70% less than cast iron, aligning with NIOSH lifting guidelines while reducing soft-tissue injuries.
Durability: Impervious to hydrogen sulfide (H2S), galvanic corrosion, and stray electrical currents.
Compliance: Fully capable of meeting stringent load standards, including AASHTO M306 and EN 124 (up to D400 manhole cover ratings).
To understand why these alternative materials perform so well, you must look at their fundamental chemistry. At a basic level, composite materials rely on a precise synergy between two core components. First, polymer resins act as the chemical binder. They hold the structure together and provide exceptional resistance against environmental degradation. Second, structural reinforcements like fiberglass or carbon fiber weave through the resin matrix. These fibers provide massive tensile strength and rigidity. When manufacturers cure this mixture under intense heat and high pressure, they produce a dense, unified material capable of surviving brutal surface conditions.
Not all advanced polymers share the same manufacturing process or performance limits. Engineers classify these products into three distinct categories based on their molding compounds. Understanding these differences ensures you deploy the right unit for the right application.
Manufacturers produce the SMC manhole cover through a highly complex, heavy-duty compression molding process. They sandwich chopped fiberglass strands between layers of advanced thermosetting resin. Next, massive industrial presses apply extreme heat and pressure to the sheet. This violent compression forces the material into every microscopic crevice of the mold, creating an incredibly dense, uniform internal structure. Because of this high-pressure curing cycle, SMC units stand as the premier choice for high load-bearing strength. They routinely handle heavy commercial truck traffic, highway installation, and severe impact forces without cracking or deflecting.
The GRP manhole cover takes a slightly different structural approach. This material focuses heavily on continuous directional strength. By carefully aligning long, continuous strands of glass fiber within the plastic matrix, engineers can dictate exactly how the cover handles applied loads. The European market heavily utilizes GRP, tightly associating it with strict ISO and EN testing standards. GRP exhibits legendary resistance to chemical attacks, making it the definitive choice for highly corrosive industrial sites, chemical processing plants, and severe coastal environments.
Think of BMC as the lighter, highly adaptable cousin of SMC. Instead of forming pre-impregnated sheets, manufacturers mix short glass fibers, resin, and fillers into a putty-like bulk compound. They inject or press this compound into molds at lower pressures. The resulting product features an exceptionally smooth finish and allows for highly intricate surface designs. However, because the internal glass fibers are shorter and less uniformly compressed, BMC cannot match the raw load-bearing capacity of SMC or GRP. You should position BMC strictly as an alternative for pedestrian walkways, public parks, and light-duty landscaping zones where heavy vehicles never travel.
Material Specification Chart
Material Type | Manufacturing Method | Structural Focus | Ideal Application |
|---|---|---|---|
SMC | High-pressure sheet compression | Maximum load-bearing density | Highways, heavy traffic, commercial ports |
GRP | Directional fiber alignment | Tensile strength and chemical immunity | Corrosive industrial sites, European road specs |
BMC | Low-pressure bulk molding | Smooth finish and aesthetic detail | Pedestrian zones, light-duty landscaping |
Specifying materials based on load capacity alone ignores the daily realities of field operations. Ground crews, maintenance teams, and municipal safety inspectors face complex challenges that metal infrastructure often exacerbates. Switching to advanced polymers directly resolves several prominent operational hazards.
You must view a lightweight manhole cover as an absolute operational necessity, not just a modern convenience. Traditional cast-iron units routinely weigh between 150 and 300 pounds. Removing them requires multiple workers, specialized lifting hooks, and immense physical strain. This dynamic routinely leads to severe spinal compression, torn ligaments, and crushed digits. By contrast, advanced polymer units weigh up to 70% less. This dramatic weight reduction directly aligns your worksite with the Occupational Safety and Health Administration (OSHA) and the National Institute for Occupational Safety and Health (NIOSH) single-worker lifting guidelines. NIOSH identifies a 51-pound threshold as the ideal maximum lifting limit for a single unassisted worker. Polymer alternatives keep lifting forces safely within human ergonomic boundaries, drastically reducing soft-tissue injuries.
Metal naturally tries to return to its unrefined state through oxidation. In the field, this means rapid degradation. When cast iron encounters road salts (sodium chloride) deployed during winter storms, the chloride ions aggressively attack the metal, causing deep flaking and structural failure. In municipal wastewater systems, anaerobic bacteria produce hydrogen sulfide (H2S) gas. This gas converts to sulfuric acid on the underside of the lid, rapidly dissolving heavy iron over just a few years. Advanced polymer resins remain completely inert to both sodium chloride and hydrogen sulfide. They never rust, they never flake, and their internal locking mechanisms never fuse together from oxidation.
Urban environments grow increasingly electrified. Stray electrical currents pose a lethal threat to utility workers and pedestrians alike. Because polymer matrix materials lack free electrons, they operate as powerful electrical insulators. This eliminates the risk of stray voltage hazards, making them vital components for underground electrical vaults, modern EV charging stations, and high-voltage substations. Furthermore, these materials offer incredibly low thermal conductivity. During peak summer heat waves, traditional iron grids absorb solar radiation, reaching temperatures capable of causing severe contact burns. Polymer surfaces dissipate heat effectively, preventing surface burn complaints in high-traffic pedestrian areas.
Beyond physical safety, unyielding materials protect site integrity through superior design characteristics.
Theft Prevention: Cast iron holds significant secondary scrap value. Thieves routinely target metal lids, leaving massive, hazardous open holes in the street. Because polymer composites hold exactly zero scrap value, they eliminate the incentive for theft, instantly mitigating catastrophic open-hole liabilities.
Water-Tightness: Environmental contamination ruins underground infrastructure. High-end polymer units accept precision-molded O-ring seals seamlessly. These seals form an absolute watertight barrier, preventing rainwater inflow and infiltration (I&I). This exact tolerance protects sensitive underground petroleum tanks and telecom vaults from devastating flooding.
No single material dominates every conceivable application. Engineering requires objectivity. You must evaluate the exact physical requirements of your specific site before abandoning legacy materials. While polymers offer massive advantages, iron retains specific physical properties suited for specialized extremes.
You should retain cast iron in scenarios where sheer dead weight provides a mechanical advantage. In ultra-heavy flood zones featuring rapid, high-volume water flow, the extreme weight of iron prevents the lid from floating or shifting off its frame. Unless you specify a polymer lid with heavy-duty mechanical bolting, fast-moving floodwaters can displace lighter materials. Additionally, iron remains preferable for extreme high-speed, heavy-impact traffic zones where the existing infrastructure lacks a specialized, perfectly level seating bed. Heavy iron can sometimes absorb the abuse of uneven point-loading better than unreinforced polymers. Finally, if legacy municipal mandates strictly require iron for code compliance, you must adhere to local regulations until engineering boards update their standards.
The transition to polymer engineering becomes mandatory when environmental or operational risks outweigh the simplicity of heavy metal. You must transition immediately in high-theft regions where missing lids create unacceptable public hazards. Highly corrosive environments demand polymers; installing iron in coastal zones, municipal wastewater treatment plants, or petrochemical facilities guarantees rapid structural failure. Telecommunications networks also represent a mandatory transition zone. Smart city sensors, RFID tagging, and underground antennas cannot transmit through heavy iron shielding. Advanced resins offer total radio-frequency (RF) transparency, allowing uninterrupted signal transmission from subterranean vaults.
Decision Matrix Summary
Scenario / Environment | Recommended Material | Primary Engineering Rationale |
|---|---|---|
High-Theft Urban Areas | Composite | Zero scrap value eliminates theft incentive. |
Heavy Flood Zones (Unbolted) | Cast Iron | Massive dead weight prevents hydraulic displacement. |
Wastewater & Coastal Sites | Composite | Absolute immunity to H2S and sodium chloride. |
Smart City Telecom Vaults | Composite | RF transparency allows unimpeded signal transmission. |
High-Speed Uneven Roadways | Cast Iron | Forgiving nature against severe point-loading impacts. |
Specifying these materials requires an understanding of how they interact with highly specialized environments. Different industries face completely different regulatory and physical hurdles. You must match the material's secondary properties directly to the industry application.
Municipal water networks face pressure from both directions. Sewer gases attempt to escape upward, while groundwater attempts to infiltrate downward. When installing polymers in utility networks, you must focus on airtight and watertight sealing capabilities. Precision-machined polymer frames accommodate thick neoprene gaskets perfectly. This creates an airtight seal preventing noxious odor escape into residential neighborhoods, while simultaneously blocking groundwater infiltration that overloads treatment facilities.

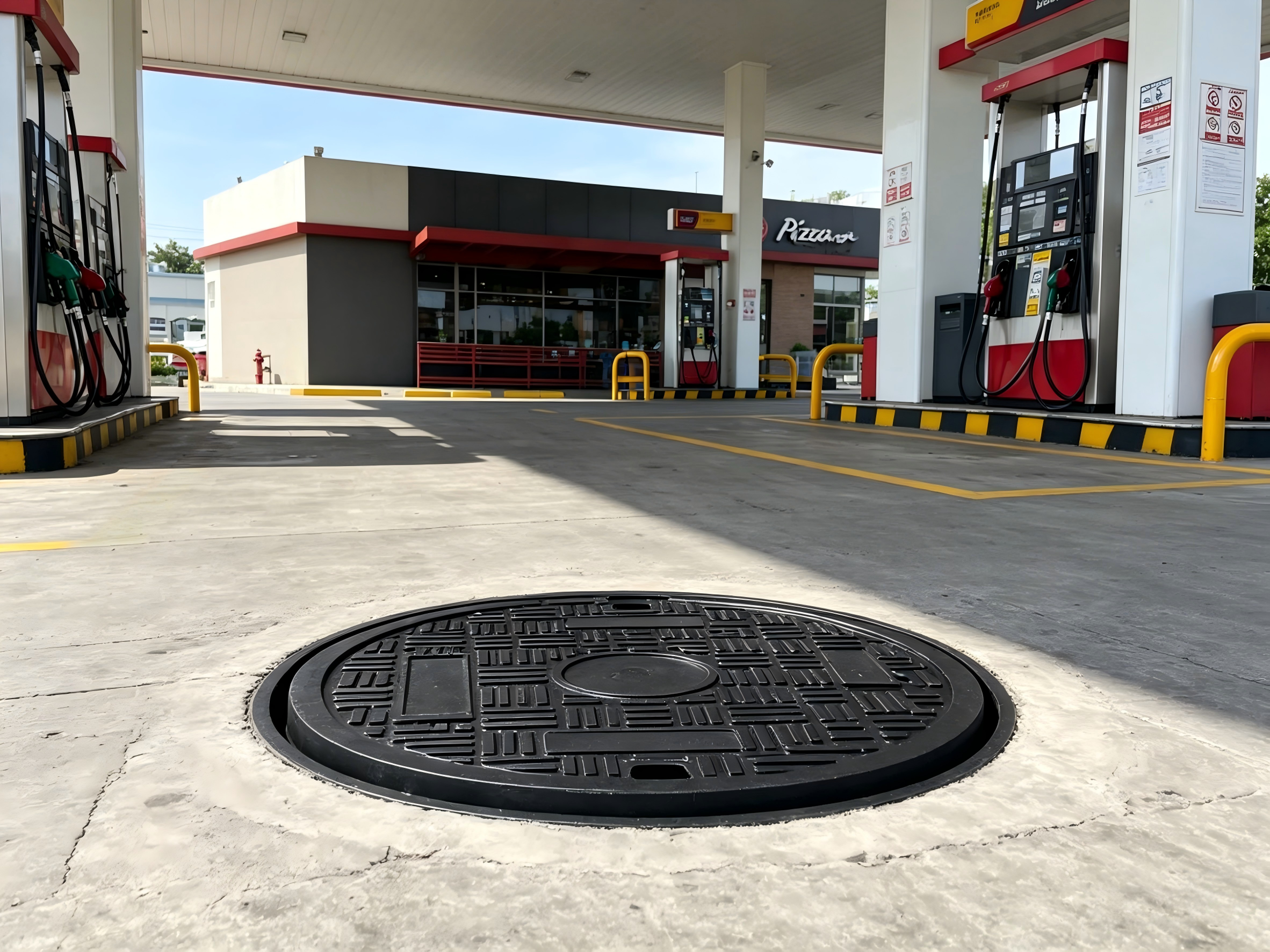

Explosive environments require extreme caution. A dropped steel wrench on a cast iron frame can generate a lethal spark. Advanced polymers highlight crucial non-sparking properties. They physically cannot generate a spark upon impact. This non-sparking nature proves absolutely crucial for explosive environments around aviation fuel depots, local gas stations, and chemical refineries. Furthermore, their watertight seals ensure surface fuel spills never contaminate the surrounding subsoil.
Modern infrastructure relies on continuous data streams. Water monitors, electrical grid sensors, and automated flow meters live underground. Heavy iron completely blocks their signals, forcing workers to manually open vaults to collect data. Because polymer resins remain invisible to radio waves, they provide complete radio-frequency (RF) transparency. This allows underground sensors, cellular relays, and RFID tagging systems to broadcast seamlessly to surface-level receivers without interruption.
Safety depends on rapid identification. Painting iron lids results in temporary color that quickly flakes away under tire friction. Polymer manufacturing fundamentally changes this dynamic. Engineers mix vibrant, UV-resistant pigments directly into the liquid resin before the curing process. This creates permanent, full-depth utility identification. You can deploy a permanent color-coding network across an entire city: red for high-voltage electrical, blue for municipal water, and yellow for natural gas. The color never fades, never chips, and requires zero repainting maintenance.
Upgrading a municipal grid requires rigorous attention to technical specifications. Purchasing unverified or improperly sized units leads to catastrophic field failures. Use this engineering checklist to ensure strict compliance and operational safety.
Never guess a traffic load. You must ensure the engineered specification matches the real-world traffic volume exactly. For heavy highways, continuous commercial traffic, and severe industrial zones, you must mandate proof of a D400 manhole cover rating under the EN 124 standard. Require the manufacturer to provide independent, third-party laboratory testing certificates confirming the unit sustains these specific crush-loads without delamination.
Lightweight characteristics represent a massive ergonomic advantage, but they introduce a new physical vulnerability: hydraulic displacement. In flood-prone areas, rapid water pressure can pop an unsecured lightweight lid out of its frame. To counteract this, always require robust mechanical locks. Specify stainless steel cam locks, quarter-turn bolts, or tamper-proof screw systems. These mechanisms physically anchor the lid to the frame, neutralizing flood risks and preventing unauthorized access to critical infrastructure.
Dropping a new lid into a fifty-year-old rusted frame invites disaster. You must check dimensional tolerances carefully. Evaluate whether replacing just the cover remains viable. If the existing cast-iron seat features warping, severe rust scaling, or uneven debris accumulation, the new polymer lid will experience severe point-loading. Uneven seating forces all the traffic weight onto a single pressure point, causing premature cracking. When in doubt, specify a full frame-and-cover integrated unit to guarantee absolute seating integrity.
A durable cover holds no value if it causes vehicle hydroplaning or pedestrian slips. Ensure the mold design includes an aggressive, deep-grooved anti-slip tread pattern. Demand specifications detailing the surface's wet-weather friction coefficients. The surface must provide equal or superior grip compared to surrounding asphalt, even under heavy rainfall or oily conditions.
Advanced polymer structures have definitively evolved from niche alternative products into standard infrastructure solutions for targeted, high-stress environments. They represent a fundamental leap in municipal engineering, solving decades-old problems related to heavy lifting injuries, rampant theft, and aggressive chemical corrosion.
By leveraging the immense strength of SMC processing and the targeted adaptability of GRP engineering, modern project managers can deploy infrastructure that genuinely survives the modern urban landscape. Your next steps require immediate site evaluation. Audit your current network to identify high-failure zones prone to H2S corrosion or chronic theft. From there, consult a structural engineer to initiate a localized pilot retrofit project, replacing your most vulnerable cast-iron units with verified, load-rated polymer alternatives.
A: No, modern high-quality units do not degrade under sunlight. Manufacturers blend powerful UV inhibitor additives directly into the polymer resin matrix during production. This specific chemical integration prevents the surface chalking, micro-cracking, and structural flaking typically associated with older plastics exposed to harsh, continuous solar radiation.
A: Yes, absolutely. Units manufactured using high-pressure Sheet Molding Compound (SMC) possess immense structural density. When engineered correctly, they easily pass stringent AASHTO H-20, M306, and EN 124 (D400) load-testing protocols, meaning they handle the exact same continuous heavy commercial truck traffic as traditional cast-iron grates.
A: You can, but you must exercise extreme caution. The dimensions must match perfectly. If the old iron frame contains rust buildup or uneven wear, the new lid will not sit flush. This creates severe point-loading under heavy traffic, which quickly cracks the material. Replacing the entire frame and lid assembly ensures optimal seating.
