You keep workers safe inside city utility structures by correctly installing manhole steps. Factory workers push strong, plastic-covered steel steps directly into wet concrete while making the structures. Otherwise, field workers put steps into hardened concrete walls by using pre-drilled holes. They do this by tapping the pointed step ends into exact openings so the tight fit holds them in place. Crew members can also secure the steps tightly using strong chemical glues. City inspectors check both methods to make sure the steps hold firm and can support a worker's weight. These steps ensure long-lasting safety when installed in modern underground systems.
Factory workers put sturdy steel steps right into wet concrete while making the structures.
Workers drill exact twenty-five millimeter holes into tough concrete so they can push the steps in later.
Sweep away all the concrete dust from the drilled holes so the step fits very tightly.
Hit the ladder steps gently using a plastic hammer so you do not ruin their outer plastic layer.
Check each step you install to ensure it meets tough federal rules for holding weight and staying firmly in place.
You need to collect the right tools before you begin any project. Most jobs use PP-Coated Steel Manhole Steps because they are very strong and resist rust. You will need a powerful rotary hammer drill with a 25 mm concrete bit to make precise holes. A tough nylon mallet helps you tap parts into place without scratching the plastic cover. You also need a bubble level, a tape measure, and a marker to plan your layout.
OSHA rule 29 CFR 1926.1204(c) lists important safety steps for anyone working inside confined spaces. You must gather the right safety gear before you start drilling into concrete walls:
Gas detectors to make sure the air inside the chamber is safe to breathe.
Air fans to push out bad fumes and keep fresh air moving.
Fences and cones to guard workers from street traffic and top-side hazards.
Body armor and safety gear to protect workers during the whole job.
You need to test the strength of the concrete before making any holes. Look closely at the hard wall to spot any cracks, gaps, or weak spots. Use a tape measure to check the height gaps between each step rung. Keeping the exact suggested space between steps makes climbing much safer for utility workers.
After that, mark the exact spots for drilling on the concrete wall. Hold a bubble level against the surface so every step stays totally flat. Draw small cross marks with a pen to show where to drill each hole. These simple actions prevent crooked steps and keep the finished ladder system completely sturdy.
Factories build strong concrete manhole sections inside clean indoor spaces. Build teams use set steel forms to shape each wall and base piece. These heavy units need built-in ladder steps so workers can climb down easily. Fitting these steps during the factory build creates safe, permanent ladder paths. Assembly workers use two main ways to put steps into these concrete pieces. You must keep work spaces tidy throughout everyday factory operations.
The direct method puts hardware inside the steel form before workers add liquid concrete. You attach PP-Coated Steel Manhole Steps to the form walls with special holding pins. These metal pins hold the step legs still at exact marked spots. You must line up the steps straight using spacing rules that meet ASTM C478 standards.
ASTM C478 sets strength rules for concrete manhole parts and requires steps to hold heavy weight tests.
You pour the wet concrete into the prepped form all around the held steps. Strong electric shakers vibrate the wet liquid fast. This shaking action clears out hidden air bubbles near the metal step legs. The fluid concrete fills every gap around the shaped ends of the step arms.
Wipe down the inner steel form and spray on form release oil.
Put holding pins through the form wall at set height marks.
Slide the step ends onto the pins until they fit snug.
Fill the form with wet concrete while running the electric shakers.
Let the concrete harden before removing the pins and steel form.
The concrete dries totally around the plastic-covered steel legs. This drying time creates a tight grip between the step coating and the hard wall. The set step turns into an unmovable part of the finished concrete section.
A few precast plants use a post-pour system rather than holding steps in the form. Workers fill the mold with liquid concrete first. Builders then press the step legs straight into the wet mix before it hardens.
You can also make pre-formed holes in fresh concrete using smooth steel rods. Workers pull these smooth rods out right as the concrete sets. This step leaves exact fit holes inside the soft wall. You tap PP-Coated Steel Manhole Steps into these fresh openings fast. The soft concrete shrinks a little around the step legs as it dries out.
Installation Phase | Method Mechanics | Structural Result |
|---|---|---|
Direct Cast | Steps mounted in mold before pour | Maximum bond strength |
Post-Pour Drive | Steps pressed into wet plastic concrete | Fast production speed |
Pre-Formed Sleeve | Pins create holes in fresh concrete | Precise hole alignment |
Workers must check concrete firmness while driving steps inside. Concrete that dries too fast will snap around the inserted legs. Concrete that stays too soft cannot hold the step arms tight. You test each step after the concrete dries completely. Good steps installed in precast parts stay firm under heavy climbing loads.
Field workers add safety hardware into hardened walls after structure placement. Steps installed in cured concrete structures require careful drilling and driving methods. You must follow strict procedures to protect the wall structure.
You begin by thoroughly checking the hard concrete surface for existing physical damage. You must monitor the concrete surface for specific visible signs before starting any work:
Cracks, spalling, and discoloration
Corrosion cracks and expansive cracks
Scaling, honeycombing, pop-outs, efflorescence, and eroded concrete
You manually measure existing crack widths using precision crack width gauges with accuracy to ~0.02 mm. You clear away any damaged surface areas before you bring out heavy power tools.
Next, you mark exact entry points on the wall face. You select a heavy-duty rotary hammer drill with a 25 mm concrete drill bit. You hold the tool perpendicular to the vertical wall face. You maintain a steady posture to keep the drill bit straight during drilling. Deviating from a right angle creates wide or oval holes. Loose holes prevent proper mechanical anchoring. You drill two parallel holes into the concrete to match the exact leg spacing of your step.
You must clear out all concrete dust completely after finishing drilling. Residual dust inside the drilled hole acts as an unwanted lubricant. Lubricant reduces friction and ruins the hold of the step legs. You insert a compressed air nozzle deep into each opening. You blow out fine dust particles using high pressure. You scrub the internal hole walls using a stiff wire brush. You repeat the air blast until no dust leaves the opening. Clean holes ensure direct mechanical contact between the concrete and the step legs.

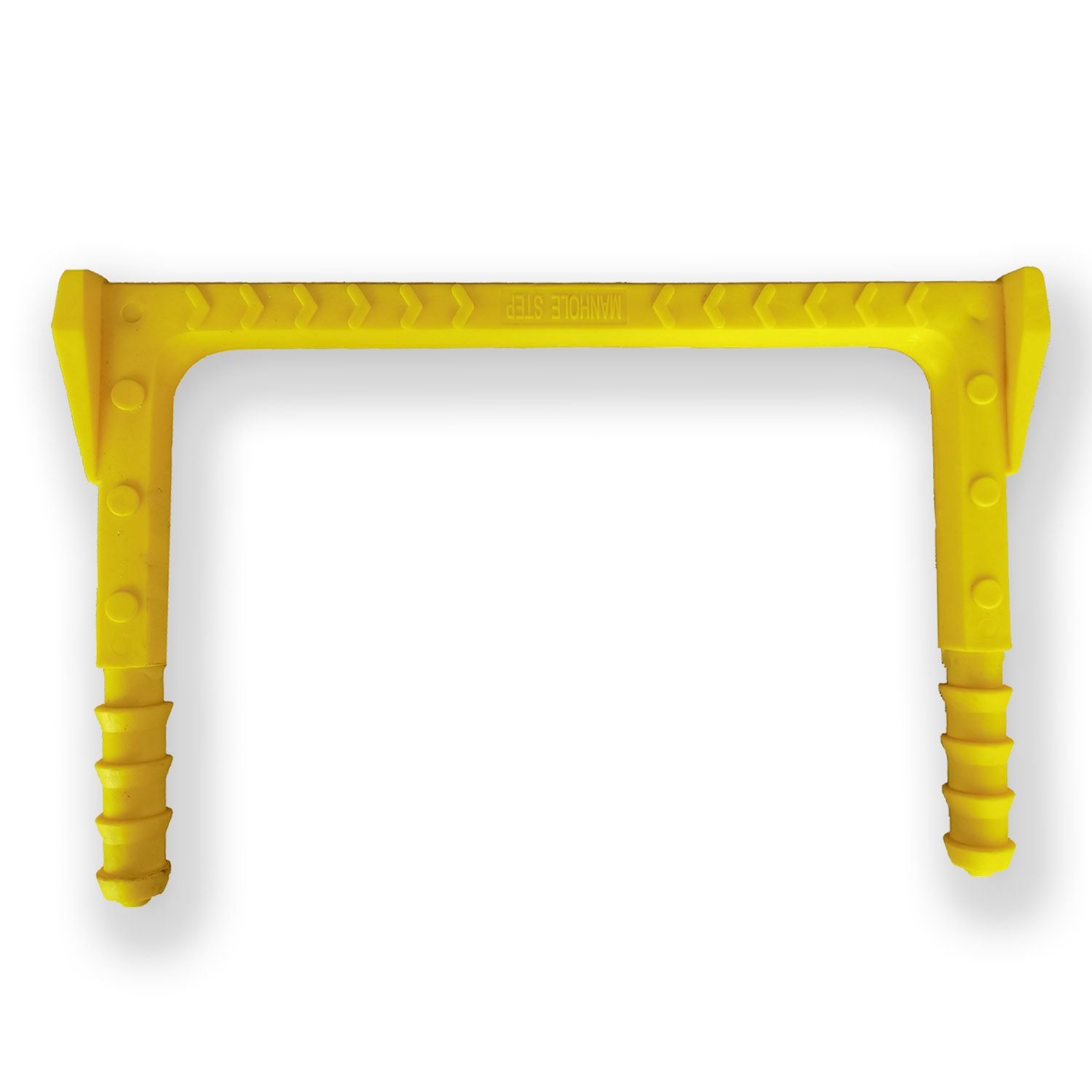

You prepare the PP-Coated Steel Manhole Steps immediately after cleaning both drilled holes. Steps installed in fresh drill holes rely on a tight, mechanical press-fit grip. The step features strong steel inner cores covered by protective plastic layers. You carefully align the tapered ends of both step legs with the clean openings.
You drive the step into the wall using a dense nylon hammer. You must never hit the step face with a heavy steel sledgehammer. Steel hammers break the protective plastic coating upon impact. Broken plastic exposes the internal steel core to fast rust. You tap the left arm end once with moderate force. You tap the right arm end once with equal force. You continue this alternating arm drive technique across both legs. Tapping each side evenly prevents the step from binding inside the openings. Uneven driving creates high mechanical stress. High stress leads to microcracking inside the surrounding concrete wall. Advanced inspectors detect microcracking growth as small as 1 µm using acoustic emission testing.
You tap both arms continuously until you reach the total insertion depth. The high-density plastic casing compresses slightly against the rigid 25 mm hole walls during entry. This intense compression locks the hardware firmly into position inside the wall structure. You verify the step alignment with a bubble level. You perform a manual pull check to confirm immediate stability. Proper installation ensures long service life for municipal workers climbing inside utility structures.
You need to verify each setup follows safety laws before using a utility space. Official rules demand tough strength tests for all built-in ladder steps. The OSHA 1910.24 rule sets clear mechanical demands for step design and weight strength. Equipment makers craft PP-Coated Steel Manhole Steps to satisfy mandatory ASTM C478 and AASHTO rules. These laws demand extra rust protection where harsh underground spaces could cause damage.
You check load limits by reading standard performance specs. The chart below shows required safety rules under federal testing guidelines:
Requirement Type | OSHA 1910.24 Specification |
|---|---|
Vertical Load Limit | Supports 800 lb (3650 N) applied over 3.5 inches (8.9 cm) |
Horizontal Pull-Out | Withstands 400 lb (1780 N) pull force without loosening |
Maximum Permanent Set | Allows no more than 0.5 inch (12.7 mm) deflection |
Vertical Step Spacing | Uniform spacing of max 16 inches (41 cm) center-to-center |
Clear Step Width | Minimum 10 inches (25 cm) climbing space |
Rear Wall Clearance | Minimum 4.5 inches (11 cm) behind step centerline |
You carry out a thorough physical check on every step setup inside the chamber. You check pull-out strength by pulling straight out on each leg. The set step parts must take these forces alone while staying locked into the wall. You put downward weight on the step at a steady pace until reaching full test capacity. You make sure the parts suffer no permanent bending beyond allowed limits.
Inspectors look at the concrete wall around every hole entry point very closely. You check that the wall has no clear cracks, breaks, or surface damage after testing heavy loads. Textured plastic covers like bumpy or grooved patterns prevent slips during normal work climbs. Lastly, you check that raised side edges stop a worker's boot from slipping off. Doing these field checks ensures long-term safety for city utility workers.
You can secure PP-Coated Steel Manhole Steps through two primary pathways. Precast factories place cast-in-place inserts directly into wet concrete forms during manufacturing operations. Field crews anchor hardware into cured wall sections using driven post-cast techniques instead.
Precise execution preserves the concrete structure during field operations. You must select an exact 25 mm drill bit when creating openings in hard concrete. Drive the step legs using a balanced alternating hammer pattern to prevent concrete spalling around each hole. Finally, perform strict load testing and safety inspections on every step installed in municipal utility chambers. Adhering to municipal installation standards protects utility workers on every climb.
You must use a 25 mm concrete drill bit with a rotary hammer drill. This tool makes exact parallel holes inside hard concrete walls. Clean openings ensure a tight mechanical press-fit grip when driving PP-Coated Steel Manhole Steps into place.
You space rungs at a maximum distance of 16 inches center-to-center under OSHA 1910.24 rules. Keeping equal vertical spacing protects workers while climbing inside concrete utility structures. Always check your local municipal specs before starting your manhole steps installation.
Steel hammers ruin the protective plastic coating on PP-Coated Steel Manhole Steps upon impact. Exposed inner steel core legs rust quickly inside wet underground environments. A dense nylon hammer drives the legs safely into pre-drilled holes without cracking the outer casing.
Under OSHA 1910.24 standards, every single step must hold an 800 lb vertical load. Steps must also withstand a 400 lb horizontal pull-out force without coming loose. These limits ensure the steps stay solid under heavy climbing weight.
