Manhole steps rarely fail for only one reason. Corrosion, damaged protective coatings, loose anchorage, concrete deterioration, repeated moisture exposure, physical damage, and improper installation can gradually reduce the reliability of an underground access system.
The failure mechanism also depends on the step construction and chamber environment. A coated steel step may become vulnerable if its protective layer is severely damaged, while an improperly anchored step can become unstable even when the rung itself remains in good condition. Understanding these different failure modes makes it easier to identify warning signs before a damaged step becomes an access hazard.
Corrosion and coating damage are important failure risks in wet or chemically aggressive chambers.
Loose steps are not always caused by corrosion. Anchor movement, damaged concrete, poor installation, and structural movement can also reduce stability.
The material should match the chamber environment. Our comparison of PP-coated steel and stainless steel manhole steps explains how the two protection strategies differ.
Surface wear, exposed metal, cracks around anchor points, unusual movement, deformation, and missing tread features are warning signs that deserve attention.
Premature failure is best reduced through suitable material selection, correct installation, protection from avoidable damage, and inspection before use.

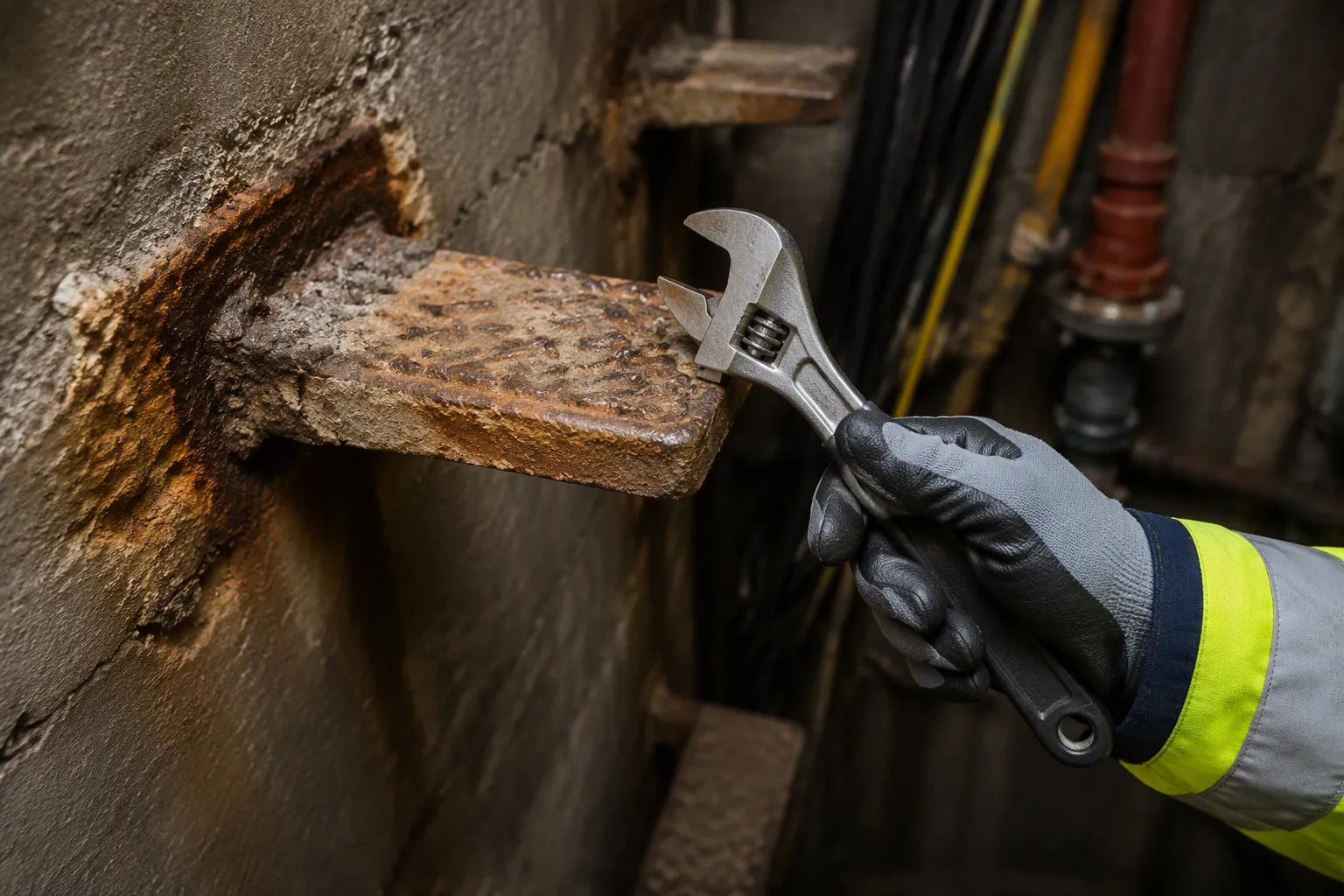

Manhole step failure can usually be traced to one or more of four areas: environmental attack, damage to the protective system, loss of anchorage, or physical deformation. The importance of each factor changes according to whether the chamber carries sewage, stormwater, utilities, or other infrastructure.
Wet underground environments can be aggressive toward exposed metals. In wastewater chambers, moisture, contaminants, wastewater gases, and biological activity may create conditions that accelerate corrosion. Unprotected carbon steel is particularly dependent on an appropriate protective system when used in these environments.
Coated steel takes a different approach. A polymer layer isolates the structural steel core from the surrounding environment. As explained in our guide to how PP coating protects steel manhole steps from corrosion, the condition of that barrier is an important part of long-term performance.
Deep cuts, cracking, severe abrasion, or other damage that exposes the steel underneath can create a localized path for corrosion. For this reason, a coated step should be evaluated as a complete system rather than simply as a steel rung with an added surface layer.
A step can also fail at the connection to the chamber wall. Cracked concrete, deteriorated mortar, inadequate embedment, installation errors, or movement around the fixing point can reduce the stability of the assembly.
This type of problem may first appear as movement when the step is checked. The rung itself can look relatively intact while the surrounding wall or anchor point has already deteriorated. That is why inspection should include both the step and the material around its connection to the chamber.
Manhole steps can be damaged by tools, equipment, construction activity, impact, improper use, or excessive force. Bent or permanently deformed steps may change the usable foothold and can indicate that the component has been subjected to conditions outside its intended use.
Physical damage is particularly important for coated products because a severe impact can affect both the rung geometry and the integrity of the protective surface. Stainless steel and other uncoated metal steps do not have the same coating failure mechanism, but deformation, cracking, damaged fixing points, or excessive wear can still require replacement.
Even a suitable step material can perform poorly when the installation does not match the product design. Incorrect hole dimensions, embedment, spacing, alignment, substrate condition, or fixing method can affect stability and climbing ergonomics.
Installation is therefore one possible cause of premature failure, but it should remain separate from material selection. Detailed installation procedures should follow the step manufacturer's instructions and the relevant chamber specification rather than a generic method.
Many failures develop progressively. A small defect may not immediately make a step unusable, but continued exposure can enlarge the problem.
Initial Condition | Possible Development | Visible Warning Sign |
|---|---|---|
Damaged protective coating | Moisture reaches exposed steel and localized corrosion begins | Cuts, exposed metal, discoloration or rust around the damaged area |
Movement at fixing point | Repeated loading enlarges the damaged area around the anchor | Wobble, cracked concrete or widening gaps |
Surface abrasion | Tread features gradually lose definition | Smooth or polished foothold surface |
Impact or misuse | Permanent deformation or damage to the fixing system | Bent rung, damaged coating or altered projection |
Environmental damage is especially important in wastewater systems. Persistent moisture and corrosive contaminants can attack exposed metal surfaces, while condensation can keep components wet even when they are not directly submerged.
Stormwater systems create a different pattern. Water, sand, grit, and debris may repeatedly contact the step during flow events, so abrasion and tread wear can become important alongside corrosion. Utility chambers may introduce still different risks, including condensation, electrical equipment, or site-specific industrial contaminants.
This is why failure analysis should start with the chamber environment. A defect that develops rapidly in a wastewater chamber may progress differently in a relatively dry utility vault.
Movement or deterioration of the chamber structure can affect components fixed into its wall. Cracking, settlement, freeze-thaw action in susceptible environments, water ingress, or other structural changes may alter the condition around a step connection.
Road environments can introduce additional demands on the complete manhole structure. Our article on D400 composite manhole covers for road applications discusses the separate requirements associated with surface access in traffic areas.
However, the traffic load class of the manhole cover should not be confused with the load requirement of an internal manhole step. They are different components with different performance considerations.
Early warning signs help maintenance teams identify deterioration before relying on a questionable access point. Conditions that deserve further assessment include:
Visible corrosion: rust, pitting, flaking or localized metal loss.
Coating damage: deep cuts, cracks, peeling or exposed steel on coated products.
Movement: a rung that feels loose or moves relative to the chamber wall.
Concrete damage: cracks, spalling or deterioration around the embedded or anchored portion.
Deformation: bent steps, altered geometry or reduced projection from the wall.
Tread wear: worn, polished or damaged surface features that may reduce grip.
Missing steps: gaps in the access sequence that disrupt safe climbing.
A visual defect does not always reveal the full extent of structural damage. Where the integrity of a step is uncertain, the responsible owner or employer should follow the applicable inspection, engineering, and replacement procedures rather than relying on appearance alone.

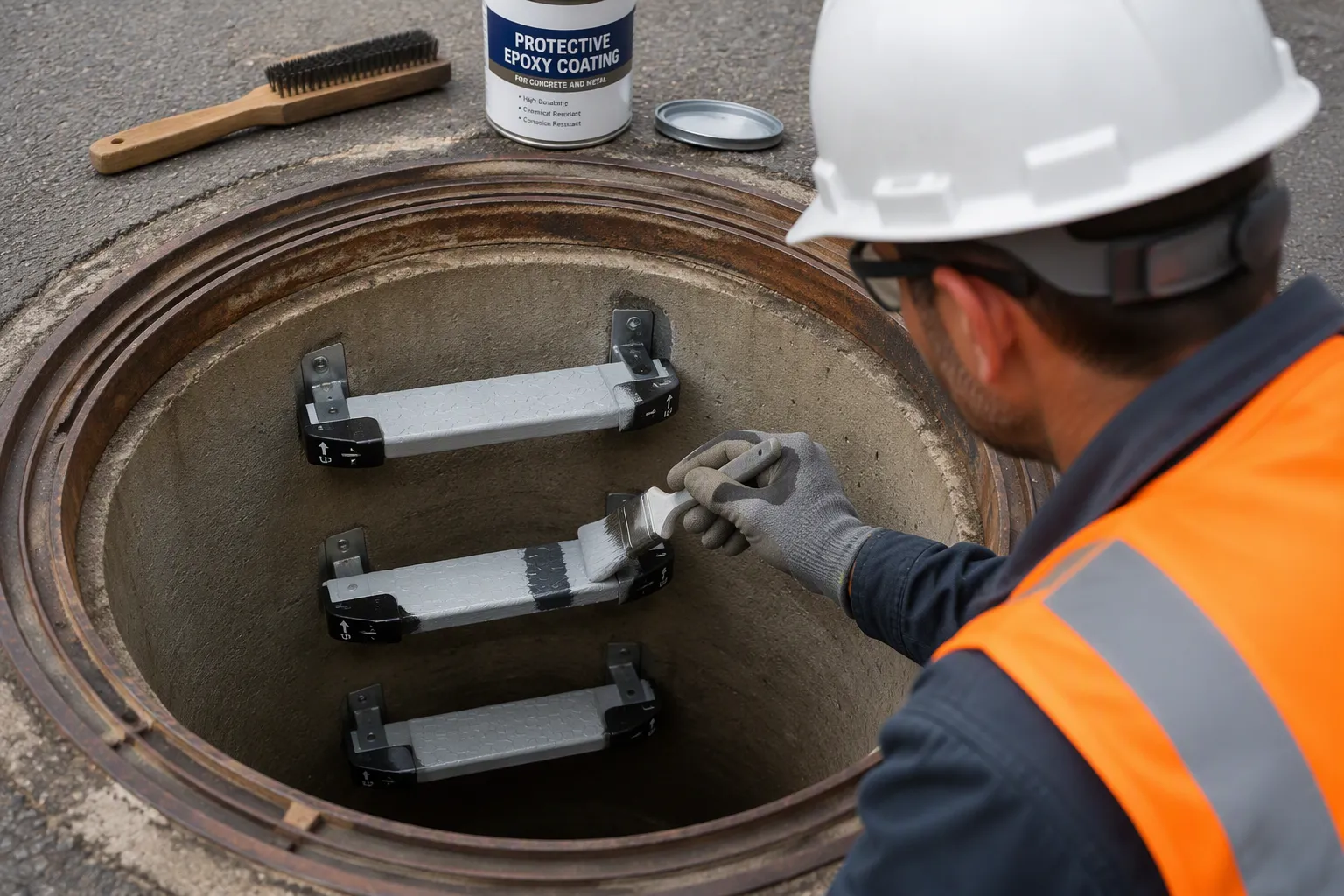

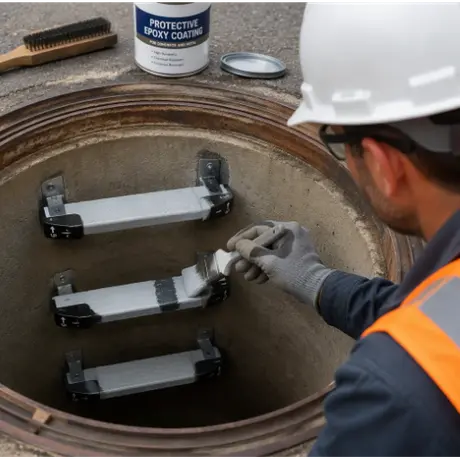

Prevention begins before installation. The step construction should be evaluated against the moisture, chemicals, contaminants, temperature, and other conditions expected inside the chamber.
Stainless steel and PP-coated steel steps, for example, use different corrosion-protection strategies. Stainless steel relies on alloy composition, while a PP-coated product uses a polymer barrier surrounding a structural steel core. Neither should be treated as universally superior for every application.
Other material systems may also be suitable depending on the project. The same principle applies across underground infrastructure: material terminology does not by itself establish performance. Our guide comparing SMC, FRP and GRP manhole covers illustrates why material, manufacturing method and application conditions should be evaluated together.
For coated manhole steps, avoid unnecessary actions that cut, grind or severely abrade the protective layer unless a manufacturer-approved modification procedure specifically allows them. Damage that exposes the steel core changes the corrosion protection at that location.
Products should therefore be checked during receiving, handling and before installation. A damaged protective layer should not automatically be treated as a cosmetic defect when it is part of the corrosion-control system.
Correct installation helps keep the step securely connected to the chamber. Hole dimensions, embedment, fixing method, spacing, alignment and substrate condition should match the selected product and chamber design.
This article does not duplicate the complete installation procedure because installation is a separate technical topic. Where installation details are required, use the manufacturer's instructions together with the project specification and applicable standard.
Manhole steps are designed as access components. They should not automatically be treated as lifting points, equipment supports, tie-off anchors or attachment points unless the product and system have specifically been designed and approved for that purpose.
Applying unintended forces can deform the rung or damage its fixing point even when the step appears strong enough for normal climbing.

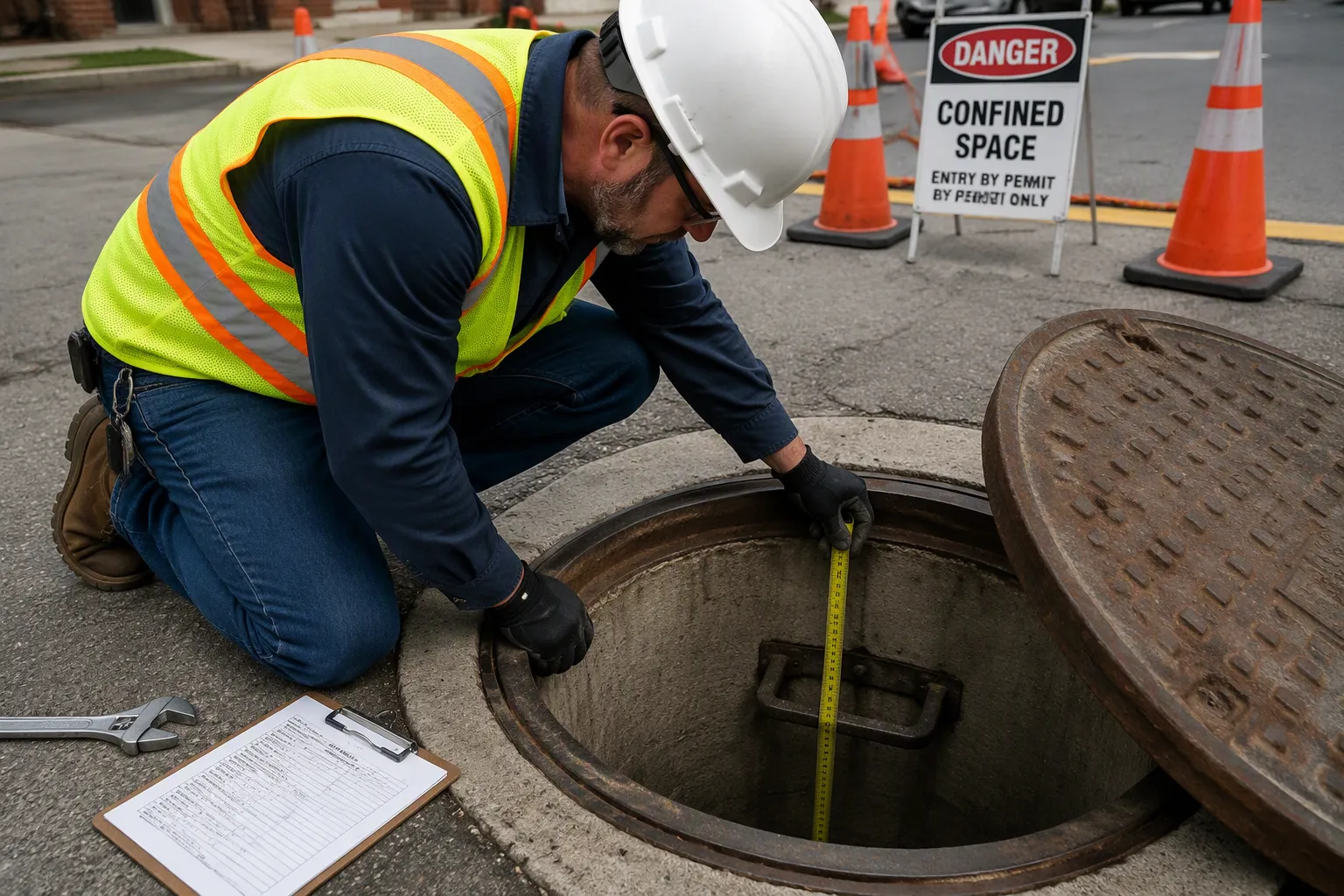

Inspection is one of the most practical ways to prevent a deteriorated step from remaining unnoticed. It should focus on the complete access point rather than only the visible center of the rung.
Condition of the tread and anti-slip surface.
Cuts, cracks or missing sections of protective coating.
Rust, pitting or other corrosion indicators.
Movement at the connection to the chamber wall.
Cracks or deterioration in the surrounding concrete.
Bent, distorted or missing steps.
Debris, deposits or contamination affecting the foothold.
For U.S. general-industry workplaces covered by OSHA 29 CFR 1910.24(b), manhole steps installed on or after January 17, 2017 must have slip-resistant surfaces, such as corrugated, knurled or dimpled surfaces. Steps used in corrosive environments must be constructed of or coated with material that protects against corrosion.
Requirement | OSHA 1910.24(b) |
|---|---|
Slip-resistant surface | Required for qualifying newer installations |
Corrosive environments | Use construction or coating that protects against corrosion |
Clear step width | Minimum 10 inches |
Vertical spacing | Uniform and no more than 16 inches apart |
Clearance behind step | At least 4.5 inches from the step centerline to the nearest permanent object behind it |
Inspection | Inspect at the start of the work shift when the steps are to be used |
These requirements are useful when evaluating safety, but regulatory compliance should not be reduced to a generic checklist. The applicable jurisdiction, chamber design, installation date and project specification should be confirmed for each project.
Not every surface mark means that a step has failed, but structural uncertainty should be treated conservatively. Replacement or further technical assessment should be considered when a step shows significant corrosion, permanent deformation, severe coating loss with exposed steel, cracking, unstable anchorage, damaged surrounding concrete, or loss of usable tread geometry.
Temporary cosmetic repair should not be used to hide structural deterioration. For example, applying a coating over heavily corroded steel does not restore metal that has already been lost, and repairing the visible surface does not correct a loose anchor inside damaged concrete.
Where repair is permitted, the procedure should come from the manufacturer, asset owner, engineer or applicable maintenance specification. Otherwise, replacing a questionable component may be more appropriate than relying on an improvised field repair.
The most effective way to reduce premature manhole step failure is to address the complete system: select a construction compatible with the chamber environment, protect the product from avoidable damage, install it according to the specified method, and inspect both the rung and its connection before use.
Corrosion, loose anchors, coating damage and deformation do not all require the same response. Identifying the actual failure mechanism makes it easier to determine whether the issue belongs to material selection, installation, chamber deterioration or ongoing maintenance.
That distinction also helps prevent repeated failures. Replacing a corroded step with the same unsuitable material does not correct the environmental problem, just as replacing a loose rung without addressing damaged concrete does not correct the anchorage problem.
Common causes include corrosion, coating damage, loose or deteriorated anchorage, damaged surrounding concrete, physical deformation, tread wear and incorrect installation. Several factors can occur at the same time, so the step and chamber environment should be assessed together.
Watch for visible corrosion, damaged coating, exposed steel, cracks around the anchor, unusual movement, bent rungs, worn tread features and missing steps. Any condition that makes the step's structural integrity uncertain should receive further assessment before use.
Not necessarily. Surface staining alone does not establish structural failure, but rust around a damaged coating, anchor point or visibly deteriorated metal can indicate that corrosion is developing. The severity and location of the damage should be evaluated rather than relying on color alone.
Severe damage that exposes the steel core can reduce the protective function of the polymer barrier at that location. Coating condition should therefore be checked during handling, installation and inspection. The appropriate response to damage should follow the manufacturer's requirements.
That depends on the extent of deterioration and the approved maintenance procedure. Cosmetic recoating cannot restore steel already lost through significant corrosion or correct a loose anchorage. When structural integrity is uncertain, replacement or engineering assessment is more appropriate than an improvised repair.
Inspection requirements depend on the jurisdiction and operating environment. In U.S. workplaces covered by OSHA 29 CFR 1910.24(b)(3), the employer must ensure each manhole step is inspected at the start of the work shift when it is to be used and maintained in accordance with the applicable walking-working surface requirements. Asset owners may also establish additional periodic inspection programs based on risk and operating conditions.
Not directly. Traffic load classes generally apply to surface components such as manhole covers and frames. Internal manhole steps have their own structural and access requirements. The load class of a road cover should therefore not be used as the load rating for the steps beneath it.
