Manhole steps may look similar from one chamber to another, but the conditions below ground can be very different. Sewer chambers expose access components to persistent moisture, wastewater gases, biological activity, and corrosive contaminants. Stormwater chambers experience repeated wet-dry cycles together with grit, sediment, and debris. Utility chambers may remain comparatively dry while introducing electrical equipment, condensation, or site-specific chemical exposure.
These differences affect the properties engineers and project teams should consider when specifying manhole steps. Corrosion resistance may be the priority in one chamber, abrasion resistance in another, while electrical insulation or chemical compatibility may become important elsewhere. This article compares those application requirements rather than covering detailed installation procedures or ranking one step material as universally better than another.
Sewer chambers generally place the greatest emphasis on corrosion resistance, moisture resistance, and reliable grip in contaminated environments.
Stormwater chambers add repeated wet-dry cycling, grit, sediment, and surface abrasion to the selection process.
Utility chambers may require additional attention to electrical insulation, chemical compatibility, condensation, and the equipment installed inside the chamber.
Step geometry, surface grip, corrosion protection, dimensions, load performance, and applicable project standards should be considered together rather than separately.
Material selection should follow the actual exposure conditions. For example, PP-coated steel manhole steps use a polymer covering to isolate the steel core from the surrounding environment, but suitability still depends on the project specification and exposure conditions.
The chamber environment should be one of the first factors considered when specifying underground access components. A step that performs well in a relatively dry utility chamber does not automatically provide the same service life in a wastewater chamber. For a broader introduction to step designs and typical applications, see our guide to what a manhole step is and where it is used.

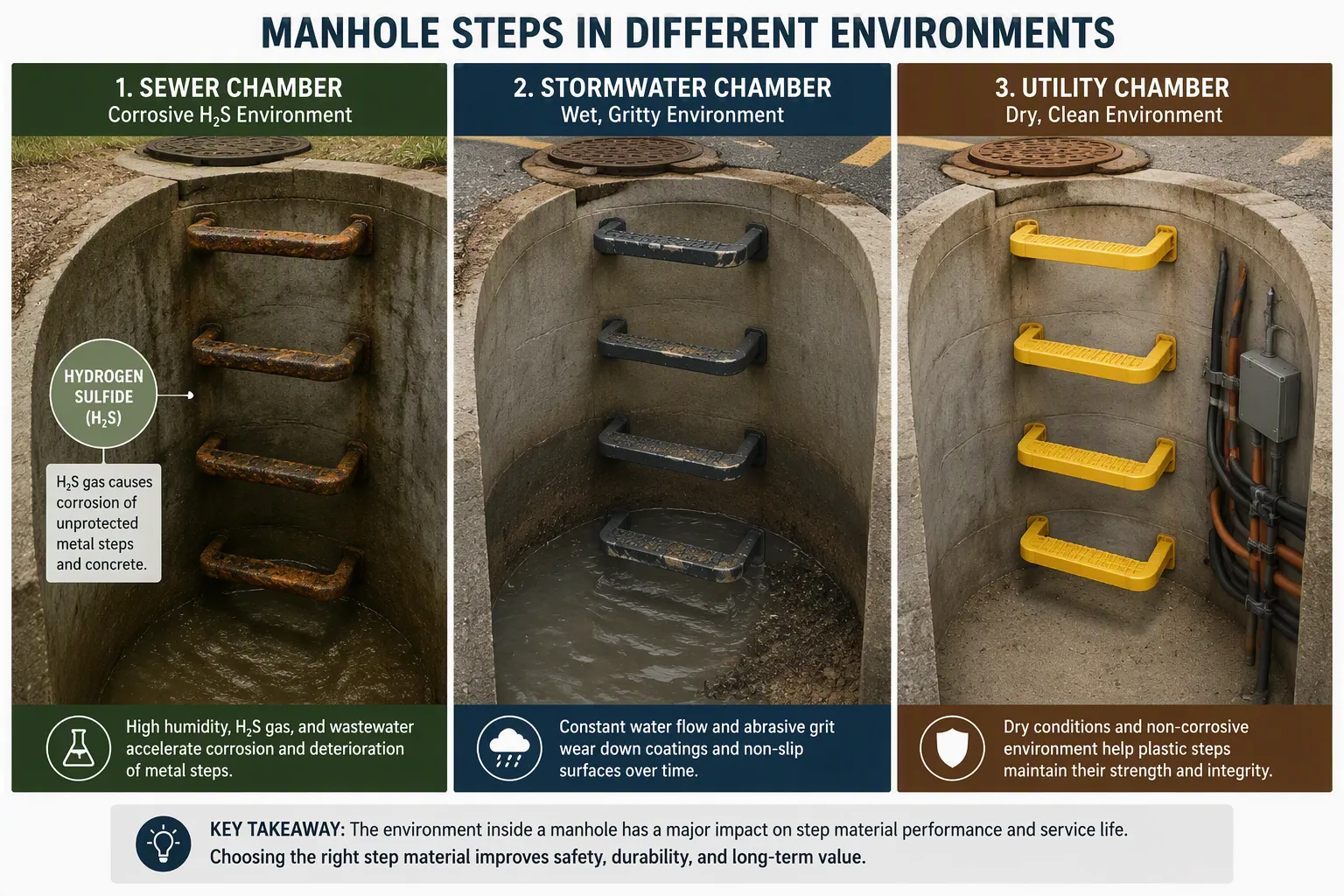

Chamber Type | Typical Exposure | Primary Step Requirement | What to Review |
|---|---|---|---|
Sewer | Moisture, wastewater gases, biological contamination, corrosive compounds | Corrosion resistance and secure wet-surface grip | Coating or encapsulation, chemical compatibility, tread condition |
Stormwater | Wet-dry cycles, grit, sand, sediment, debris | Abrasion resistance and slip resistance | Tread geometry, surface durability, coating wear |
Utility | Condensation, electrical equipment, localized chemicals or vapors | Application-specific material compatibility | Electrical environment, chemical exposure, chamber design |
Sewer chambers can create demanding conditions for exposed metal components. Wastewater gases, persistent humidity, condensation, biological activity, and chemically aggressive deposits can all contribute to deterioration. For this reason, bare metal should not be selected simply because it offers high mechanical strength.
The protective system surrounding the structural core matters as well. A properly manufactured polymer-coated or encapsulated step can reduce direct contact between the steel and the surrounding environment. Our PP plastic-coated iron manhole steps, for example, combine a metal core with an external polymer surface for underground access applications.
The condition of that protective surface should remain part of routine inspection. Cuts, deep impact damage, cracking, or localized exposure of an underlying metal core can change how the component responds to a corrosive environment.
A sewer step also has to remain usable when the surface is wet. Water, condensation, sludge, and biological deposits can reduce friction, which makes tread geometry more important than appearance alone. Corrugated, ribbed, dimpled, knurled, or other textured surfaces can help reduce the possibility of a foot slipping from the step.
For U.S. general-industry applications, OSHA 29 CFR 1910.24(b) specifically requires qualifying manhole steps installed on or after January 17, 2017 to use a surface that minimizes slipping and to be protected against corrosion when installed in a corrosive environment. Applicable local codes and project specifications should also be checked before finalizing a design.
Stormwater chambers experience a different exposure pattern. Instead of remaining continuously wet, they may fill during rainfall and then drain and dry. Water can carry sand, grit, leaves, soil, and other debris through the system. These particles can contact step surfaces repeatedly over the service life of the chamber.
That changes the selection emphasis. Corrosion resistance still matters, but engineers should also examine whether the tread and protective surface can tolerate repeated abrasion. A step may remain structurally sound while gradually losing tread definition or suffering localized coating wear.
Raised ribs, molded textures, and other anti-slip features should remain effective after repeated exposure. If the chamber carries significant sediment, the durability of those features deserves particular attention.
Coated products should also be evaluated as complete systems rather than simply as “steel plus coating.” Polymer type, coating integrity, geometry, manufacturing quality, and exposure all influence long-term performance. More detail on the protective function of polymer encapsulation is available in our guide to how PP coating protects steel manhole steps from corrosion.
Utility chambers cannot be treated as one uniform environment. Telecommunications, electrical distribution, water infrastructure, industrial utilities, and other underground systems may all use chambers with different operating conditions.
Some remain relatively dry. Others experience condensation or groundwater intrusion. Certain chambers may contain electrical equipment, while industrial locations may introduce site-specific chemicals or vapors. The step material therefore needs to be evaluated against the actual chamber environment rather than selected solely from a generic product category.
Where electrical equipment is present, the electrical properties of exposed access components may become part of the project specification. Polymer surfaces and composite materials can offer useful non-conductive characteristics, but their suitability should be confirmed against the complete chamber design and applicable safety requirements.
Chemical compatibility deserves similar attention. A polymer that performs well in a wastewater or stormwater system may react differently to solvents, oils, or industrial chemicals. When a project requires a specialized geometry or material combination, custom composite parts can also be evaluated alongside standard underground access products.
Material selection should follow the application requirements established above. Steel, polymer-coated steel, stainless steel, cast iron, and composite or polymer solutions each offer a different balance of structural performance, corrosion behavior, weight, surface design, and cost.
For example, a polypropylene-coated steel manhole step combines a load-bearing metal core with a molded polymer exterior. This construction can be useful where mechanical strength and environmental isolation are required together.
Stainless steel may be considered for applications requiring exposed-metal corrosion resistance, while polymer or composite components may be useful where low conductivity or resistance to specific environmental conditions is important. None of these categories should be treated as the automatic choice for every underground chamber.
For a more focused material comparison, see PP-Coated Steel vs Stainless Steel Manhole Steps. Keeping material comparison separate from application selection makes it easier to evaluate each decision on its own.
Environmental resistance alone does not make a safe access step. Rung geometry, usable width, projection from the chamber wall, spacing, and anti-slip features also affect climbing safety.
For U.S. workplaces covered by OSHA 29 CFR 1910.24(b), manhole steps installed on or after January 17, 2017 must have a minimum clear width of 10 inches, be vertically spaced no more than 16 inches apart, provide at least 4.5 inches between the step centerline and the nearest permanent object behind it, and be designed so the user's foot is less likely to slip or slide off the end.
Other jurisdictions and projects may use different requirements. European projects may reference EN 13101 for steps used in underground man-entry chambers. The applicable specification should therefore be identified before dimensions, step configuration, and product testing are finalized.
A product specification should connect the chamber environment to measurable product requirements. Depending on the market and project, that may include load performance, dimensional requirements, corrosion protection, pull-out performance, material identification, or other tests required by the governing standard.
OSHA 1910.24(b) requires each manhole step to support its maximum intended load. It does not establish the old generalized “200-pound minimum for every manhole step” statement sometimes repeated from earlier ladder guidance. For project approval, product performance should instead be checked against the standard, engineering specification, and installation conditions that actually apply.
European projects may use EN 13101, which addresses requirements, marking, testing, and conformity evaluation for certain steps used in underground man-entry chambers. When comparing products, review documentation for the specific step model rather than relying only on general marketing statements.
The same principle applies to other underground components. Material names alone do not define actual product performance. Our comparison of SMC, FRP, and GRP manhole covers explains why construction, manufacturing method, and application requirements need to be considered alongside terminology.
Installation is important, but it is a separate specification question from deciding how sewer, stormwater, and utility environments affect step requirements. Cast-in, drilled, anchored, and other fixing arrangements can behave differently depending on chamber construction and the step design.
For that reason, installation should follow the step manufacturer's instructions, chamber design, and project requirements rather than a universal method. Detailed installation procedures are covered separately in our guide on how to properly install manhole steps.
This separation is especially important when reviewing pull-out performance. Test results should correspond to the relevant step, fixing method, substrate, and installation conditions rather than being assumed to apply to every possible chamber configuration.
Inspection priorities should also follow the chamber environment. Sewer chambers may require particular attention to corrosion, coating condition, contamination, and tread grip. Stormwater chambers should be checked for abrasion, sediment accumulation, and tread wear. Utility chambers may require inspection for condensation, corrosion near equipment, chemical exposure, or other site-specific conditions.
Inspection frequency should be established by the asset owner, applicable regulation, operating conditions, risk assessment, and maintenance program rather than by an arbitrary universal interval. OSHA 1910.24(b) also requires employers to ensure manhole steps are inspected at the start of the work shift when they are to be used.
The chamber opening should be considered as part of the complete underground access system. Our guide to choosing the right composite manhole cover for roads, sidewalks, and utilities discusses how surface application affects cover selection, while our comparison of composite and cast iron manhole covers for municipal projects addresses another part of the access system.
Before approving a manhole step for a sewer, stormwater, or utility chamber, review the application in this order:
Environment: Is the chamber continuously wet, intermittently wet, chemically aggressive, abrasive, electrically sensitive, or exposed to site-specific contaminants?
Material compatibility: Is the step material or protective coating compatible with the expected moisture, chemicals, and temperature range?
Surface grip: Does the tread geometry provide appropriate slip resistance for the expected wet or contaminated conditions?
Dimensions: Do width, spacing, stand-off distance, and configuration meet the project requirements and applicable standard?
Mechanical performance: Is the step capable of supporting the required intended load, with relevant test documentation available?
Installation compatibility: Does the fixing method match the chamber wall, substrate, and manufacturer's installation instructions?
Inspection access: Can the step surface, fixing condition, and protective layer be inspected throughout the service life of the chamber?
When we evaluate underground access products, we recommend starting with the chamber environment rather than trying to select one manhole step material for every project. Sewer, stormwater, and utility chambers expose components to different combinations of corrosion, abrasion, moisture, contamination, and equipment-related risks. Defining those conditions first makes the later material, geometry, testing, and installation decisions much clearer.
Corrosion resistance and reliable grip in wet or contaminated conditions are usually major considerations. Sewer chambers can expose steps to persistent moisture, wastewater gases, biological deposits, and corrosive contaminants, so the step material and any protective coating should be compatible with the expected environment.
Stormwater chambers often experience repeated wet-dry cycles together with sand, grit, sediment, and debris. This makes abrasion resistance and long-term tread durability particularly important in addition to general corrosion resistance.
They can be. Utility chambers may contain electrical equipment, condensation, groundwater, oils, solvents, or other site-specific exposures. Material selection should therefore follow the actual equipment and environmental conditions within the chamber.
Current OSHA 29 CFR 1910.24(b) states that each manhole step must be capable of supporting its maximum intended load. For steps installed on or after January 17, 2017, the regulation also includes requirements for slip-resistant surfaces, corrosion protection where necessary, minimum clear width, maximum vertical spacing, clearance behind the step, and protection against the foot slipping from the end.
EN 13101 addresses requirements, marking, testing, and conformity evaluation for certain steps used in underground man-entry chambers. It is relevant to applications including sewage and surface-water environments, although project teams should always confirm the exact standard and national requirements applicable to the installation.
Start by defining the chamber environment and performance requirements. Material and protective system can then be evaluated against those conditions, followed by dimensions, mechanical performance, and installation compatibility. For detailed installation guidance, refer to the separate manhole step installation article rather than treating the fixing method as the primary environmental selection criterion.
