SS500D
Elite
Elite-SS500D

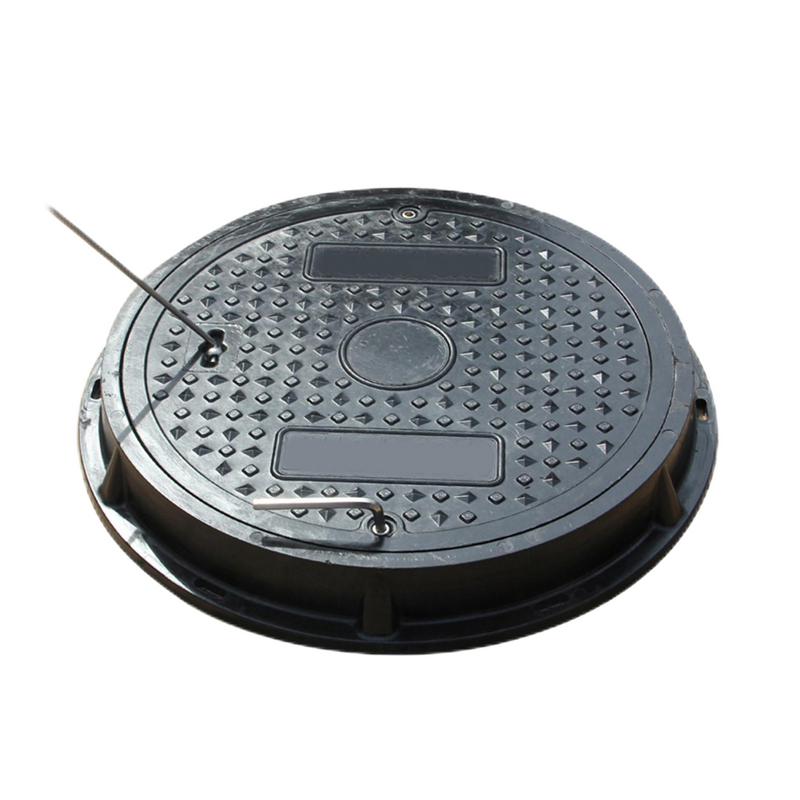

Elite GRP/SMC Composite Manhole Covers are designed for infrastructure projects where conventional cast-iron covers may create challenges related to handling weight, corrosion exposure, theft, or long-term maintenance.
The covers are manufactured from fiberglass-reinforced SMC/BMC composite materials through compression molding. The resulting structure provides a combination of mechanical performance, environmental resistance and reduced handling weight for a wide range of underground access applications.
Rather than replacing cast iron in every situation, SMC composite covers are particularly valuable where installation efficiency, corrosion resistance, theft prevention and lifecycle cost are important factors in material selection.
SMC composite covers can be considered for:
Municipal utility networks
Drainage and wastewater systems
Water infrastructure
Telecommunications
Electrical utilities
Residential developments
Commercial properties
Industrial facilities
Renewable energy infrastructure
Roads and service areas
Utility access chambers
Infrastructure replacement projects
The required load class should always be determined from the actual traffic conditions, installation location and applicable project specification.
Elite composite manhole covers can be developed for different loading requirements, including:
| Class | General Application |
|---|---|
| A15 | Pedestrian and restricted-access areas |
| B125 | Footways, parking areas and light-duty locations |
| C250 | Kerbside and moderate traffic areas |
| D400 | Roadways and heavier traffic applications |
Specific product dimensions, reinforcement and testing requirements may vary according to the selected model.
Material selection for a manhole cover should not be based solely on purchase price. Installation resources, environmental exposure, theft risk and expected service conditions can substantially affect the overall project cost.
| Evaluation Factor | SMC Composite | Cast Iron |
|---|---|---|
| Structural Performance | Suitable load configurations available for a broad range of infrastructure applications | Well established for demanding heavy-load applications |
| Handling | Lower product weight simplifies transportation and positioning | Considerably heavier and may require additional handling equipment |
| Corrosion | Composite body does not rust like ferrous metal | Corrosion protection may be required depending on environment |
| Theft Exposure | No conventional scrap-metal value | Scrap value can create a theft incentive |
| Electrical Property | Non-conductive composite structure | Electrically conductive metal |
| Maintenance | No conventional metal rust treatment | Surface corrosion may require attention in aggressive environments |
| Design Options | Color, markings and molded surface designs can be customized | Appearance is generally based on casting and finishing |
| Installation Efficiency | Particularly useful where labor or lifting resources are limited | Greater handling resources may be required |
| Lifecycle Considerations | Potential savings from reduced corrosion, theft and handling costs | Lower initial material cost may be attractive for price-sensitive projects |
Cast iron remains a strong option for applications where extremely high mechanical loading is the primary consideration.
SMC becomes increasingly attractive when the project also needs to address weight, corrosion, theft, electrical insulation and maintenance.
The correct choice therefore depends on the complete operating environment rather than material price alone.
The first selection criterion should be the expected loading condition.
Road traffic, parking areas, pedestrian zones and restricted-access utility areas have different requirements. The cover class should therefore be selected from the actual installation environment rather than simply choosing the highest available class.
A heavy access cover can increase the labor and equipment required during installation and future maintenance.
The lower handling weight of an SMC cover can be particularly useful for projects with limited lifting equipment, restricted working areas or large numbers of access points.
Moisture, salt, wastewater, chemicals and coastal conditions can accelerate deterioration of exposed metal.
The composite structure provides an alternative where long-term resistance to these environmental factors is an important design consideration.
In locations where cast-iron theft is a recurring concern, a non-metallic cover removes the conventional scrap-metal incentive.
Additional locking arrangements can also be incorporated when controlled access is required.
For utility chambers containing electrical or communication systems, the non-conductive nature of the composite material can be an additional consideration during product selection.
The purchase price represents only one part of the total cost.
For some projects, reduced handling requirements, lower corrosion-related maintenance and lower theft exposure can offset a higher initial product price over the operating period.
Suitable for access points throughout municipal utility networks, including drainage, water, telecom and general underground services.
The absence of a conventional ferrous cover surface can be advantageous in areas exposed to salt-laden moisture and marine environments.
Composite materials can be considered where the cover is exposed to wastewater, humidity or selected chemical contaminants. Final material compatibility should be confirmed for particularly aggressive chemicals.
SMC formulations and product designs should be selected according to the expected service temperature and environmental conditions. For projects involving unusually high or low temperatures, Elite can evaluate the application before production.
The non-metallic construction significantly reduces the economic incentive associated with scrap-metal theft compared with cast iron.
A composite cover does not have to be limited to a standard appearance.
Elite can develop product configurations according to project or distributor requirements, including:
Clear opening
Cover diameter or length
Frame dimensions
Overall height
Color
Surface pattern
Texture
Product identification
Company logo
Municipal identification
Utility name
Project marking
Locking system
Sealing arrangement
Customized frame
Special installation configuration
For replacement projects, an existing cover drawing, photograph with dimensions or physical sample can be used as the starting point for product development.
Product performance should be evaluated against the requirements of the intended application.
Depending on the project, Elite can support:
Dimensional verification
Visual inspection
Load testing
Material-related testing
Production inspection
Third-party laboratory testing
Project-specific documentation
Third-party testing can be arranged where required by the buyer, consultant, contractor or tender specification.
Applicable standards and test methods should be confirmed for the specific product model and market before production.
For customized projects, Elite follows a structured development process:
Requirement → Drawing Review → Product Design → Tooling → Sample → Testing → Approval → Mass Production
This process allows the final configuration to be confirmed before committing to larger production quantities.
For repeat orders, the approved specification can be retained as the production reference to maintain consistency between batches.
Elite supports several purchasing models:
For contractors, EPC companies and infrastructure projects requiring a defined quantity and specification.
For distributors building a composite access-cover product range for their local market.
For customers requiring their own branding, markings, packaging or product configuration.
For utilities and property operators replacing damaged, corroded or frequently stolen cast-iron covers.
Mixed specifications can be discussed where a project requires different load classes or dimensions.
Quality management begins before molding and continues through final shipment.
The production process includes controls for:
Raw Materials
Verification of incoming composite materials before production.
Molding
Monitoring of the compression-molding process to maintain consistent product formation.
Dimensions
Inspection against the approved drawing or specification.
Appearance
Checking of surface finish, edges, markings and molding quality.
Performance
Testing according to the required load classification and project specification.
Final Release
Verification of quantity, model, packaging and shipment condition before dispatch.
Relevant inspection and testing documentation can be provided according to the order requirements.
Elite supports both standard production and customized composite cover programs.
Products can be prepared for international transportation using:
Palletized packing
Protective film
Customized export packaging
Product identification labels
Container loading plans where required
Shipping can be arranged by sea, air or other suitable transportation methods depending on the order volume and destination.
For larger infrastructure programs, production and shipment schedules can be coordinated with the customer's project timeline.
The two materials have different performance characteristics. Cast iron remains advantageous in some extreme heavy-load applications, while appropriately designed SMC covers can meet the requirements of many pedestrian, municipal, utility and traffic applications. The correct comparison should be made using the actual load class and test requirements.
SMC is a fiber-reinforced composite with a lower density than cast iron. This allows the cover to achieve the required structural performance with substantially less handling weight in many applications.
D400 composite covers can be developed and tested for applications requiring this load classification. The specific model should be selected according to the applicable test standard and project requirements.
The composite body does not rust in the same way as iron or steel. This makes SMC particularly attractive in wet, coastal and corrosive environments.
Yes. The non-conductive composite construction makes them suitable for many telecom and communication chamber applications.
No product should be described as absolutely theft-proof. However, because SMC has little conventional scrap-metal value, the economic incentive for theft is substantially lower than with cast iron.
Performance depends on the material formulation, product design and operating conditions. Projects involving extreme temperatures should be evaluated against the applicable temperature range and testing requirements.
Yes. Customized colors can be considered according to the product design and order quantity.
Yes. Customers can provide the existing cover dimensions, drawing or sample. Elite can evaluate whether a composite replacement can be developed.
Yes. Relevant existing reports can be provided where applicable, and project-specific third-party testing can be arranged when required.
There is no single material that is ideal for every manhole application.
Cast iron remains a proven choice for extremely demanding loading conditions and markets with established metal-cover supply chains.
SMC composite offers a different value proposition: lower handling weight, resistance to conventional rust, reduced scrap-metal theft exposure, electrical insulation and greater flexibility in appearance and customization.
For projects where these factors have a meaningful impact on installation, maintenance or lifecycle cost, GRP/SMC can be a compelling alternative to traditional cast iron.
Send us your existing cover drawing, required load class, chamber opening and project quantity. Elite can evaluate the application and recommend a suitable composite configuration.
